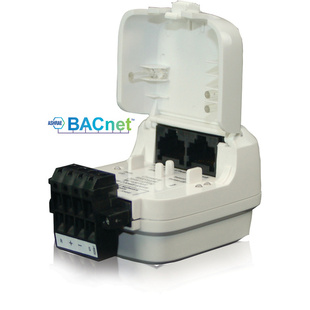

DLM Wired Network Bridge Module
LMBC-300
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1
The LMBC-300 Digital Network Bridge provides a segment network connection for a group of Digital Lighting Management (DLM) local network devices. This enables individual DLM local networks to be aggregated into a larger system, which, in turn, can be remotely managed from a DLM Segment Manager or a building automation system (BAS).
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Component of Digital Lighting Management integrated control systems
- Adds segment network functionality a to DLM local network
- Communicates all DLM local network data and device settings to a Segment Manager and/or LMCS software
- Easy integration with BAS through use of standard BACnet objects to represent DLM local network device settings and states
- Class 2 operation and plenum rated housing facilitate simple installation
- DIN rail mounting clamp provided with the unit to facilitate box or panel mounting
- UL 2043 plenum rated
Specifications
General Info
| Color | White | ||
| Product Series | LMBC | ||
| Type | Bridge | ||
| Finish | Glossy | ||
| Application Sector | Commercial | ||
| Product Line | Wattstopper | ||
| Country Of Origin | China | ||
| Included | Din Rail Clip | ||
| Installation Location | Ceiling, Wall | ||
| Warranty Type | 5-Year | ||
| Standard | UL, RoHS, FCC part 15 | ||
| UPC Number | 754182927302 |
Dimensions
| Product Depth US | 1.7 in | ||
| Product Height US | 3.1 in | ||
| Product Volume US | 10.54 cu in | ||
| Product Width US | 2.0 in | ||
| Product Weight US | 0.2 lb |
Additional Information
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Current Draw | 30 mA | ||
| Number of Connections | 3 | ||
| Topology | Free Topology | ||
| Connector Type | MS/TP, RJ-45 | ||
| Compatibility | DLM Wired | ||
| Indicator | Device Status LED, Receive LED, Transmit LED | ||
| Indoor/Outdoor | Indoor | ||
| Input Voltage | 24 VDC | ||
| Mounting Type | Inside 2-Gang J-Box, Surface | ||
| Operating Temperature | 32°-158°F | ||
| Operating Temperature Max | 158 °F | ||
| Operating Temperature Min | 32 °F | ||
| Operating Humidity | 0-95% RH (Non-Condensing) | ||
| Storage Temperature | 23° - 176° F |
Resources
Installation Instructions
Instruction Sheet
CAD Drawings
90-161 - LMBC-300 Network Bridge with Room Controller
pdf
90-161 - LMBC-300 Network Bridge with Room Controller
dxf
90-161 - LMBC-300 Network Bridge with Room Controller
png
90-161 - LMBC-300 Network Bridge with Room Controller
dwg
90-162 - LMBC-300 Network Bridge with Multiple Room Controllers
pdf
90-162 - LMBC-300 Network Bridge with Multiple Room Controllers
dxf
90-162 - LMBC-300 Network Bridge with Multiple Room Controllers
dwg
90-162 - LMBC-300 Network Bridge with Multiple Room Controllers
png
View More
BIM Models
Supporting Document
