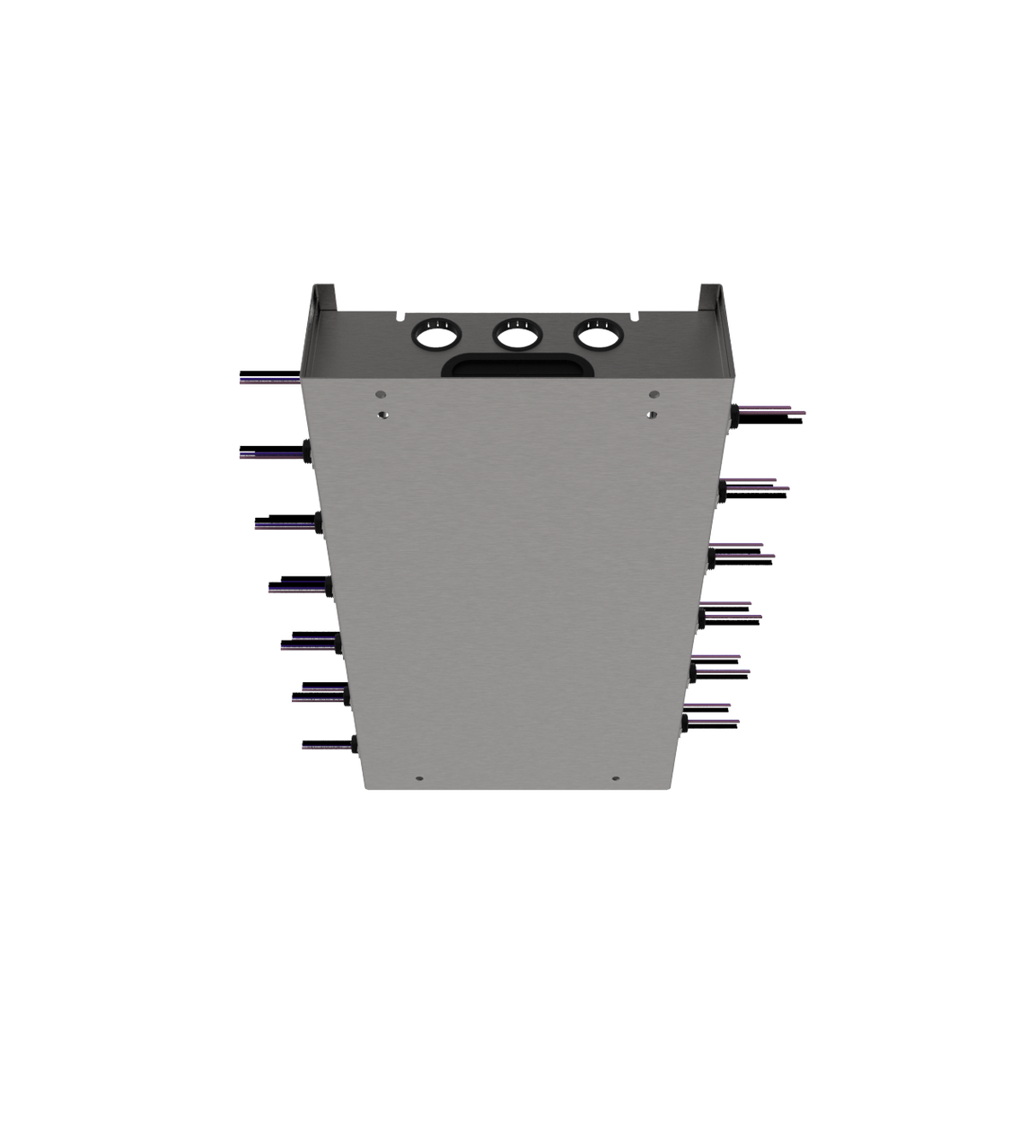

Wattstopper PLUS Dimming Relay Panel, 24 Contacts

The EN-CP panel series is designed to provide high-power switching and 0-10V dimming between groups of luminaires and the GreenBus™ communication network. The panels can be networked together on Wired GreenBus™ to enable automation through out an entire facility. Wattstopper PLUS devices such as switches, occupancy sensors, daylight sensors, and other devices connect to the panel with the GreenBus™ Wired Manager. The panel controls multiple groups ON or OFF via integral high current relays while setting the zones' overall light levels with 0-10V dimming outputs wired to the luminaires' dimming ballasts or LED drivers. The EN-CP panel series dimming outputs can be isolated and suitable for installation as either NEC Class 2 or Class 1 circuits. The panel can switch and dim entire circuits of electrical loads and is suitable for general-purpose plug load control.
