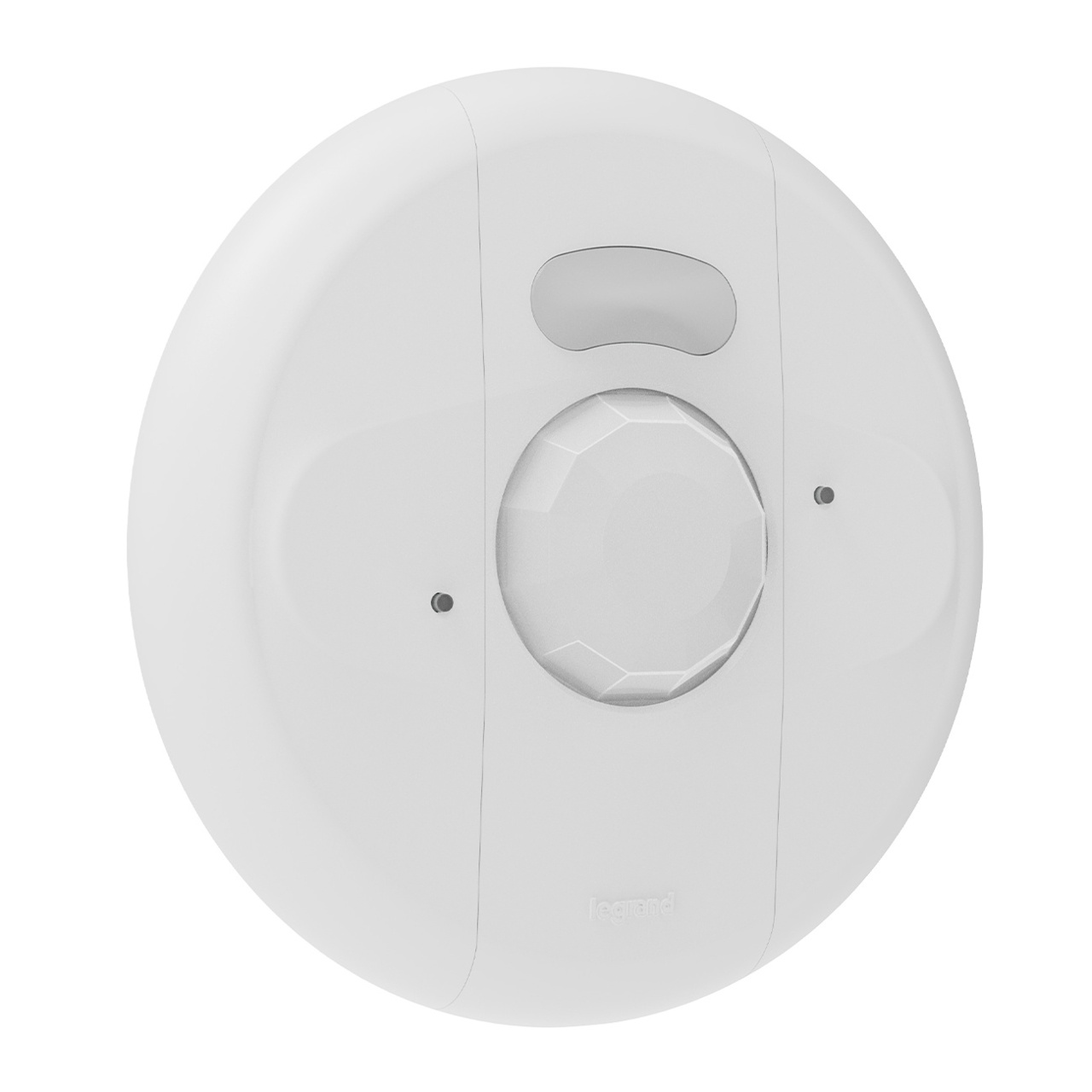

side of LMPC-100-5 in white

DLM PIR Ceiling Sensor, High-Bay

LMPC-100-5 Wattstopper
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 8ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The LMPC-100 low profile Digital PIR Ceiling Mount Occupancy Sensor uses passive infrared (PIR) technology and one of three lenses to detect occupancy in different types of spaces for energy-efficient control of lighting and plug loads. It is a digital sensor, and is part of a Wattstopper Digital Lighting Management (DLM) system.

Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Passive infrared sensor with a high-bay lens for mounting heights up to 40’
  • LMPC-100 Series includes passive infrared sensors with a choice of three 360° coverage patterns
  • Quick access to Push n’ Learn for system personalization
  • Digital sensor with LCD display and programming pushbuttons behind snap-off cover
  • IR transceiver for wireless configuration and remote control
  • Low profile design for architectural appeal
Specifications

Specifications

General Info
Color White
Product Series LMPC-100
Type Sensor
Material ABS
Finish Matte
Application Sector Commercial
Product Line Wattstopper
Country Of Origin China
Features Adjustable Time Delay, Indicator Lights, Load Controller Required, Sensitivity Adjustment
Included Spring Clips
Installation Location Ceiling
Warranty Type 5-Year
Standard UL, cUL, FCC part 15, RoHS, PEP
UPC Number 754182934379
Dimensions
Product Depth US 2.2 in
Product Height US 4.5 in
Product Volume US 44.4 cu in
Product Width US 4.5 in
Product Weight US 0.3 lb
Additional Information
Security   Yes This product is ioXt certified
Product Environmental Profile Yes
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Current Draw 7 mA
Number of Rockers 0
On Function Auto On
Topology Free Topology
Wire Connection Type RJ-45
Compatibility DLM Wired, Infrared Wireless
Has Battery No
Indicator PIR Detection LED
Indoor/Outdoor Indoor
Input Voltage 24 VDC
Lens Type High Bay
Location Rating Dry
Mounting Type 4 in Octagonal J-Box, Ceiling Tile, Surface
Number of Buttons 0
Timer Type Digital
Timer Duration 1-30 Minutes
Operating Temperature 0°-55°C, 32°-131°F
Operating Temperature Max 131 °F
Operating Temperature Min 32 °F
Operating Humidity 5-95% RH (Non-Condensing)
Sensing Range 70 ft diameter
Sensitivity Adjustment PIR (0-100%)
Sensor Type Occupancy
Sensor Technology Passive Infrared (PIR)
Sensor Coverage Pattern 360 °
Sensor Mounting Height 40 ft
Storage Temperature 23° - 176° F, -5° - 80° C
Engraving Type Blank
