Front View of LMRC-111-20M

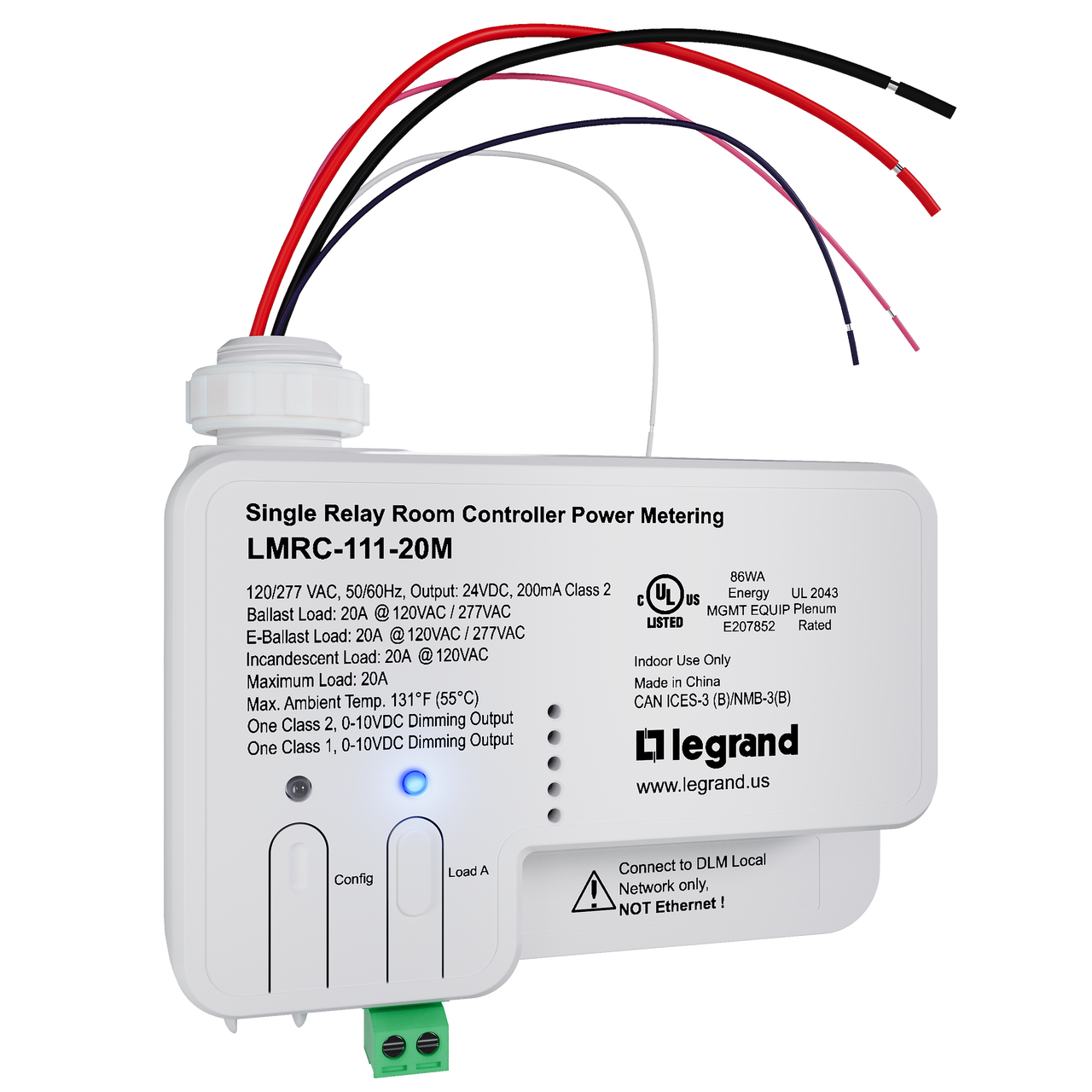

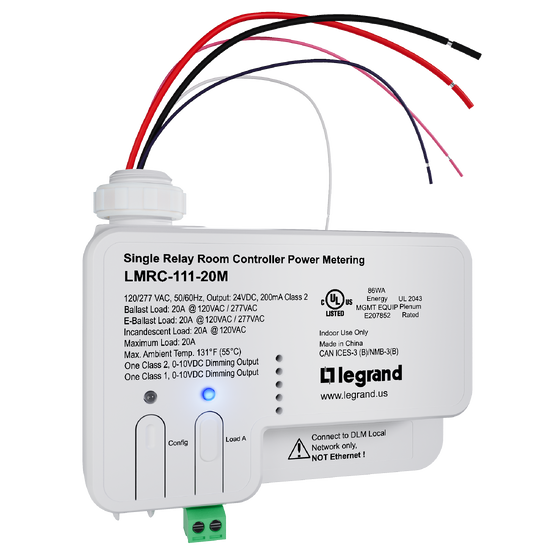

Left Angled View of LMRC-111-20M

DLM ON/OFF/0-10 VOLT DIMMING ROOM CONTROLLER, USA

LMRC-111-20M-U Wattstopper
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 28ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

LMRC-111-20M room controllers include one relay capable of switching a 20 amp load, a high-efficiency intelligent switching power supply and both Class 1 and Class 2 0-10 volt outputs for control of dimmable loads including compatible LED drivers or electronic ballasts. Room Controllers are the foundation of a Digital Lighting Management (DLM) system, and allow integration of occupancy sensors, daylighting controls and switches for energy-efficient control

BAA Yes
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Push n' Learn™ functionality for personalization without the need for tools or a PC
  • Digital Lighting Management components plug together on a free-topology Cat 5e DLM local network eliminating wiring errors
  • On/Off/Dim local override button for each load
  • LED indicates status of load
  • 0-10V signal opens on loss of LMRC power
  • 3 RJ45 ports; molded cable tie ring for strain relief
  • UL 2043 plenum rated
  • Instantaneous current and voltage measurement of total connected load
  • Zero-crossing circuitry for reliability and increased product life
  • This product meets the materials restrictions of RoHS
Specifications

Specifications

General Info
Color White
Product Series LMRC
Type Room Controller
Material ABS
Finish Glossy
Application Sector Commercial
Product Line Wattstopper
Country Of Origin United States
Installation Location Ceiling
Warranty Type 5-Year
Standard cUL, UL, FCC, RoHS, BAA, TAA
UPC Number 754182949021
Dimensions
Product Depth US 3.2 in
Product Height US 2.0 in
Product Length US 4.4 in
Product Weight US 0.65 lb
Listing Agencies / 3rd Party Agencies
FCC Compliant Yes
cUL Listed  Yes
Trade Programs
BAA  Yes
Additional Information
Product Has Potential to Contribute to LEED Yes This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings Yes
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Current Draw 20 A
Number of Connections 3
Topology Free Topology
Wire Connection Type RJ-45
Dimming Compatibility 0-10 V
Compatibility DLM Wired
Has Battery No
Indoor/Outdoor Indoor
Input Voltage 120/277 VAC
Line Frequency 50 Hz, 60 Hz
Location Rating Dry
Mounting Type 1/2 in Knockout
Number of Relays 1
Operating Temperature 0°-55°C, 32°-131°F
Operating Temperature Max 131 °F
Operating Temperature Min 32 °F
Operating Humidity 5-95% RH (Non-Condensing)
Maximum Power 2400 W @ 120V, 5540 W @ 277V
Output Voltage 24 VDC
Bus Power Supply 200 mA @ 24 VDC, Class 2
Security Method Data Encryption
Storage Temperature 23° - 176° F
