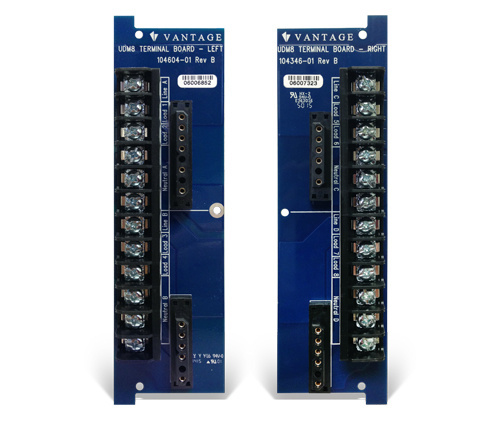

Universal Dimmer Module Terminal Board Kit
TUDM-KIT
Vantage
Bazaarvoice SAP Hybris Integration Version 2.8.1
Vantage's AC Terminal Boards are sold and installed separately from the enclosures. This allows the installer to use different module models inside the enclosure. The TUDM-KIT supports the UD8-EM Module.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
Vantage's AC Terminal Boards are sold and installed separately from the enclosures. This allows the installer to use different module models inside the enclosure. The TUDM-KIT supports the UD8-EM Module.
- Terminal boards support 8 loads as well as four line feeds and 12 neutrals.
- Includes one TUDM-L (4 load, left board), one TUDM-R (4 load, right board), module load labels (one pair), two #6-32 x 7/8 Screws
Specifications
General Info
| Product Type | Kit, Load Controller | ||
| Application Sector | Commercial, Residential | ||
| Product Line | Vantage | ||
| Country Of Origin | United States | ||
| Warranty Type | 5-Year | ||
| UPC Number | 804428068853 |
Dimensions
| Product Depth US | 0.875 in | ||
| Product Height US | 7.8 in | ||
| Product Width US | 2.125 in |
Listing Agencies / 3rd Party Agencies
| cUL Listed | Yes |
Additional Information
| Energy Savings | No |
Technical Information
| Compatibility | InFusion | ||
| Indoor/Outdoor | Indoor | ||
| Operating Temperature | 0°-40°C, 32°-104°F | ||
| Storage Humidity | 5-95% RH (Non-Condensing) | ||
| Wire Gauge | 10-14 AWG |
Resources (2)
Cutsheet
Installation Instructions
