CORE MPO-12 Trunk, MPO MM Non-Pinned to MPO MM Non-Pinned, 250UM uDist OFNP 3.0mm, 48F, OM4 Multimode, 50 Feet

C4747B100EENNY050F Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 20ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

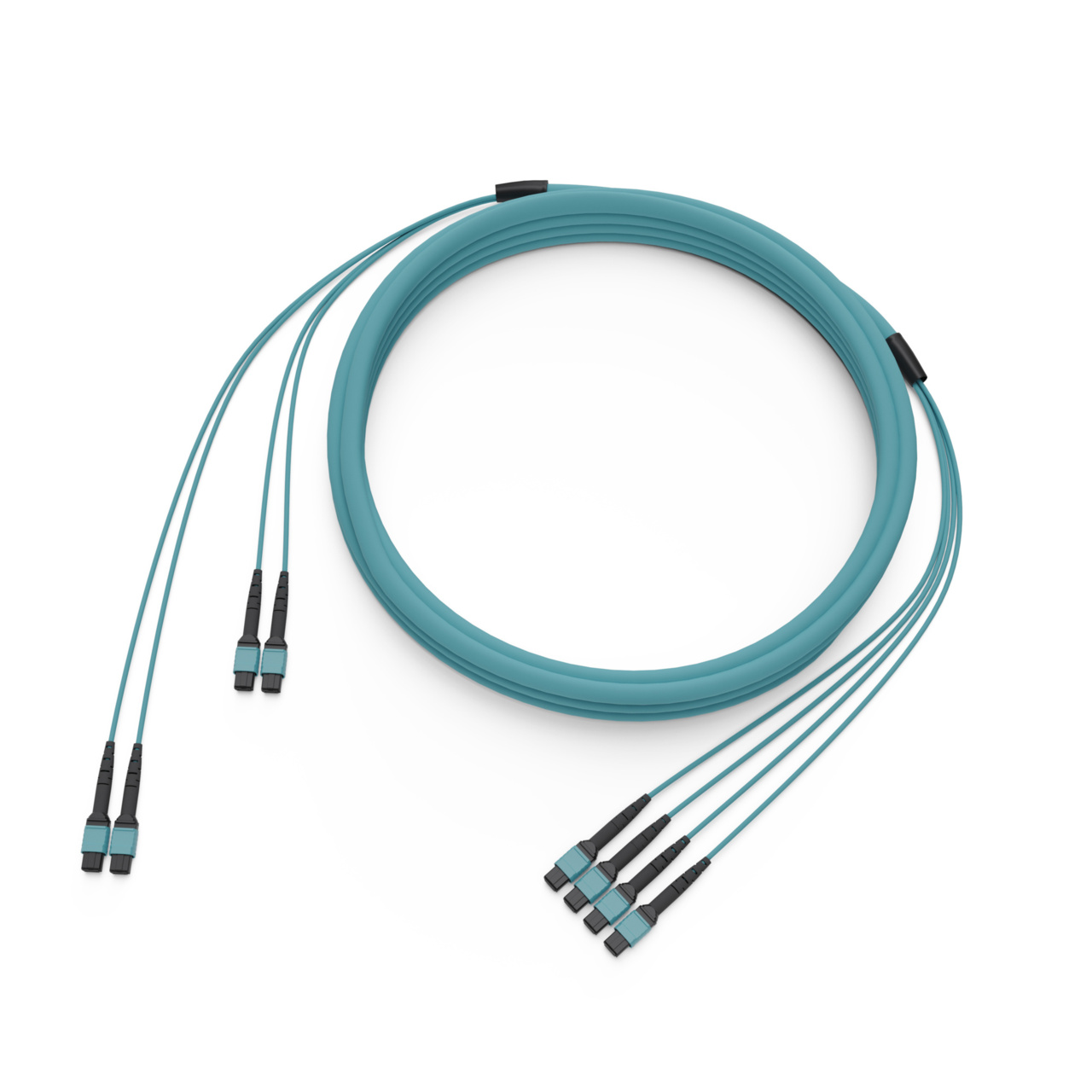

This CORE MPO trunk ensures high-performance single-mode connectivity with a 12-fiber MPO-12 MM non-pinned to MPO-12 MM non-pinned interface. Built with a Type B polarity and 250µm uDist Interconnect OFNP 3.0mm construction, this OM4 trunk delivers low-loss, standards-compliant performance for high-density network environments. The assembly features MPO-to-MPO staggered terminations, and no pulling-eye ideal for structured cabling, cross-connects, and cabinet-to-cabinet interconnects. These fiber trunks are fully configurable to meet all of your network infrastructure needs.
Fiber Type OM4
  • OM4
Length 50 ft
  • 50 ft
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Fully Configurable MPO Trunk Design: Enables selection of fiber type, polarity, connector style, staggering, jacket rating, and length to meet exact network specifications
  • High-Performance OM4 Multimode Transmission: Supports reliable 40G/100G short-reach applications with low insertion loss for high-bandwidth data center connectivity
  • Factory-Terminated MPO Connectors: Provides consistent performance and eliminates the need for field polishing or testing
  • Type B Polarity Configuration: Simplifies duplex mapping and supports standard data center architectures for easier installation
  • 250µm uDist Interconnect Cable Construction: Offers a compact, high-density footprint ideal for crowded pathways or cabinet routing
  • OFNP-Rated 3.0mm Jacket: Meets plenum requirements for safety and compliance in data centers and commercial buildings

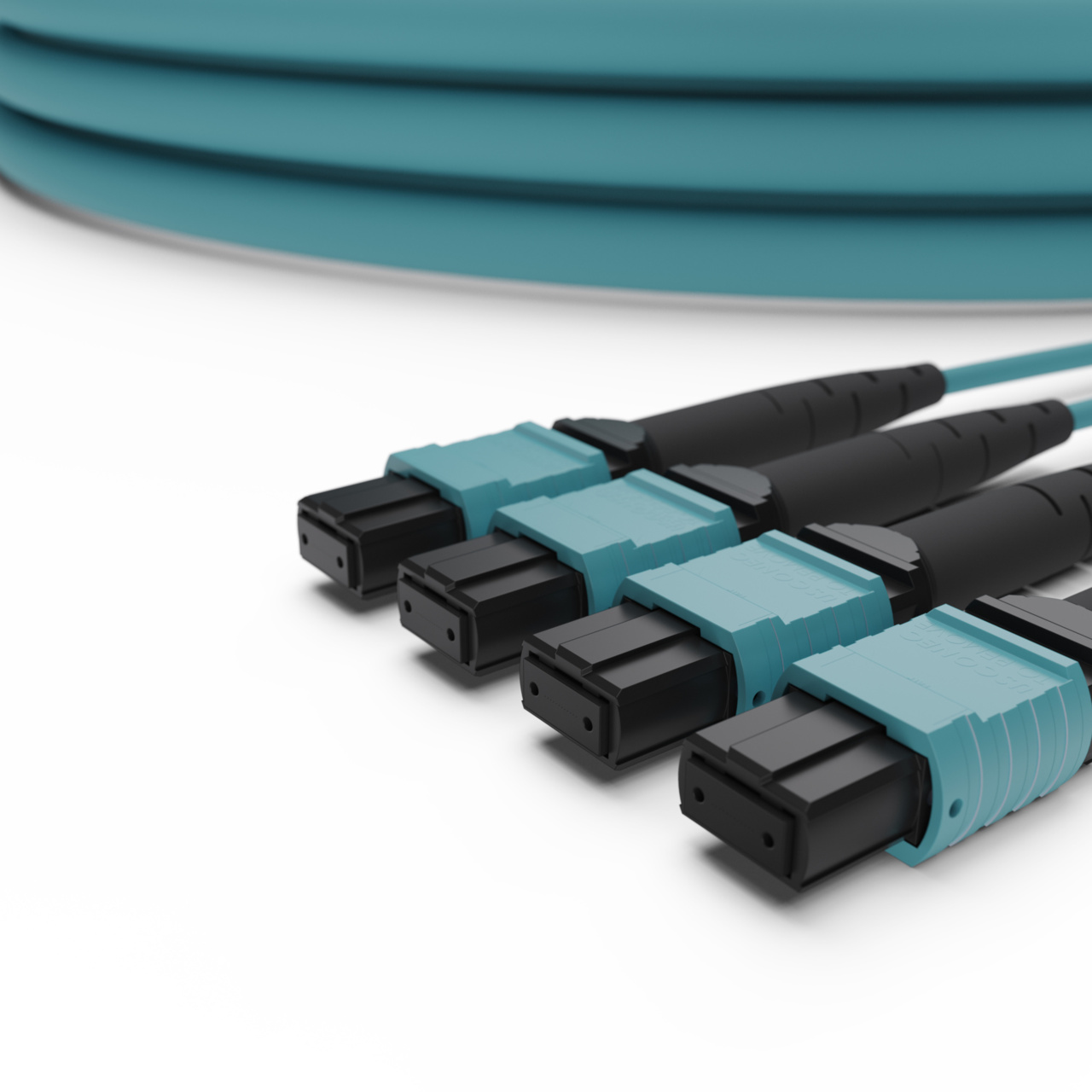

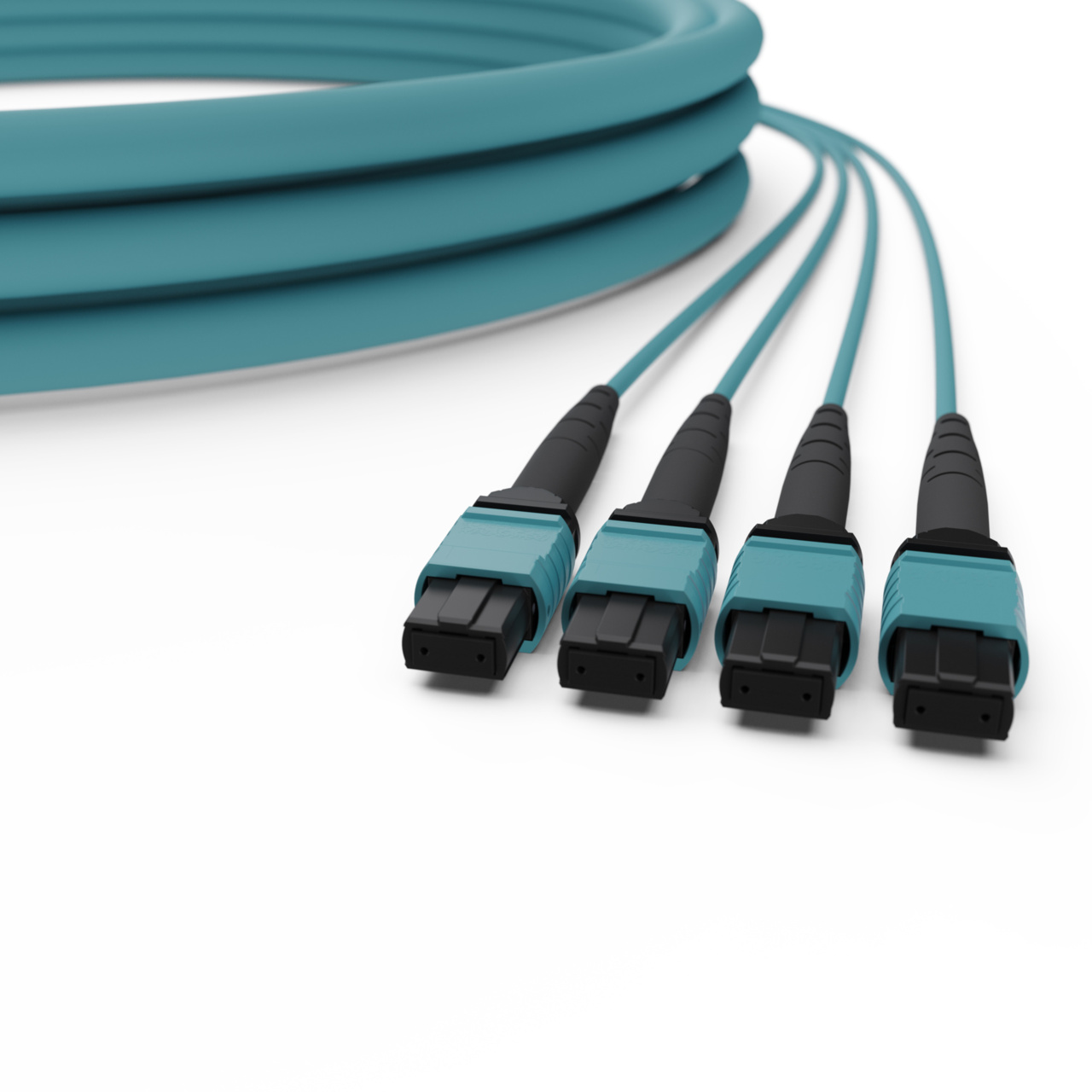

  • Staggered MPO Design: Improves fiber breakout organization and connector spacing to reduce congestion, support cleaner routing, and make installation and maintenance easier in high-density environments

Specifications

General Info
Color Aqua
Type Trunk
Application Sector Commercial, Data Center, Industrial
Product Line Ortronics
Country Of Origin Mexico
Construction Micro Array
Boot Color Black
Connector Color Aqua
Warranty Type 5-Year
Dimensions
Product Length US 50.0 FT
Listing Agencies / 3rd Party Agencies
REACH Compliant Yes
Additional Information
Energy Savings No
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Cable Diameter 8.8 mm
Bend Radius 88 mm
Connector 1 MPO Female
Connector 2 MPO Female
Durability Max IL of 0.3 dB at 200 cycles per TIA-568.3-E
Fiber Optic Cable Type OM4
Number of Fanout Cables 4
Number of Fibers 48
Fanout Cable Length 24 in
Maximum Insertion Loss 0.75 dB
Polarity Type B
Polish Type UPC
Typical Insertion Loss 0.3 dB
Operating Temperature 0°-70°C, 32°-158°F
Operating Temperature Max 158 °F
Operating Temperature Min 32 °F
Pitch 0.25 mm
Return Loss 20 dB
Storage Temperature -40° - 150° F, -40° - 70° C
