Field Wired deQuorum Single Flip Up Unit with USB
DQFF20UST
Wiremold
Bazaarvoice SAP Hybris Integration Version 2.8.1

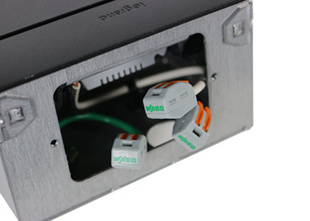

Field wired unit includes one (1) 15A black tamper-resistant duplex receptacle with two (2) USB ports that provide 3.1A. Comes with a black powder coat finish.
Application Sector
Commercial
3-4 Weeks
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?
Features
- Sleek, Attractive Design &ndash: Slimmer, lower profile integrates well with table surfaces to enhance conference rooms, meeting rooms, hotel rooms, kitchens, and offices.
- UL Spill Water Protection &ndash: Meets or exceeds UL 111 - Outline of Investigation for Multioutlet Assemblies. Eliminates risk of shock or short circuiting due to moisture entering device.
- Tamper-Resistant Receptacles &ndash: Meets 2011 NEC TamperResistant requirements. Receptacles feature our patented shutter system that prevents the insertion of foreign objects for safety.
- USB Charging Capability &ndash: Duplex 3.1A USB receptacles provide charging capacity for a wide range of mobile devices.
- New Soft Opening Cover Mechanism &ndash: Opening and closing the cover is quieter and easier with a more professional feel.
- Multiple Cover Finish Options &ndash: Durable black powder coat and brushed stainless steel finishes blend with most decors.
- Expanded Configuration Options &ndash: Accepts full size receptacles which provides expanded custom flexibility. Consult factory for more information.
- cULus Listed &ndash: Meets UL US and Canadian Safety standards for Multioutlet Assemblies (File E15191, Guide PVGT).
Specifications
General Info
| UPC Number | 786776186833 | ||
| Country Of Origin | Mexico | ||
| Product Line | Wiremold | ||
| Application Sector | Commercial | ||
| Type | Flip Up |
Additional Information
| RoHS Conformant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes | ||
| cULus ListingNumber | E15191 |
Buy American Act Compliance
| NAFTA | Yes |
Technical Information
| Mounting Type | Recessed |
Resources
Installation Instructions
Supporting Document
Sell Sheet
