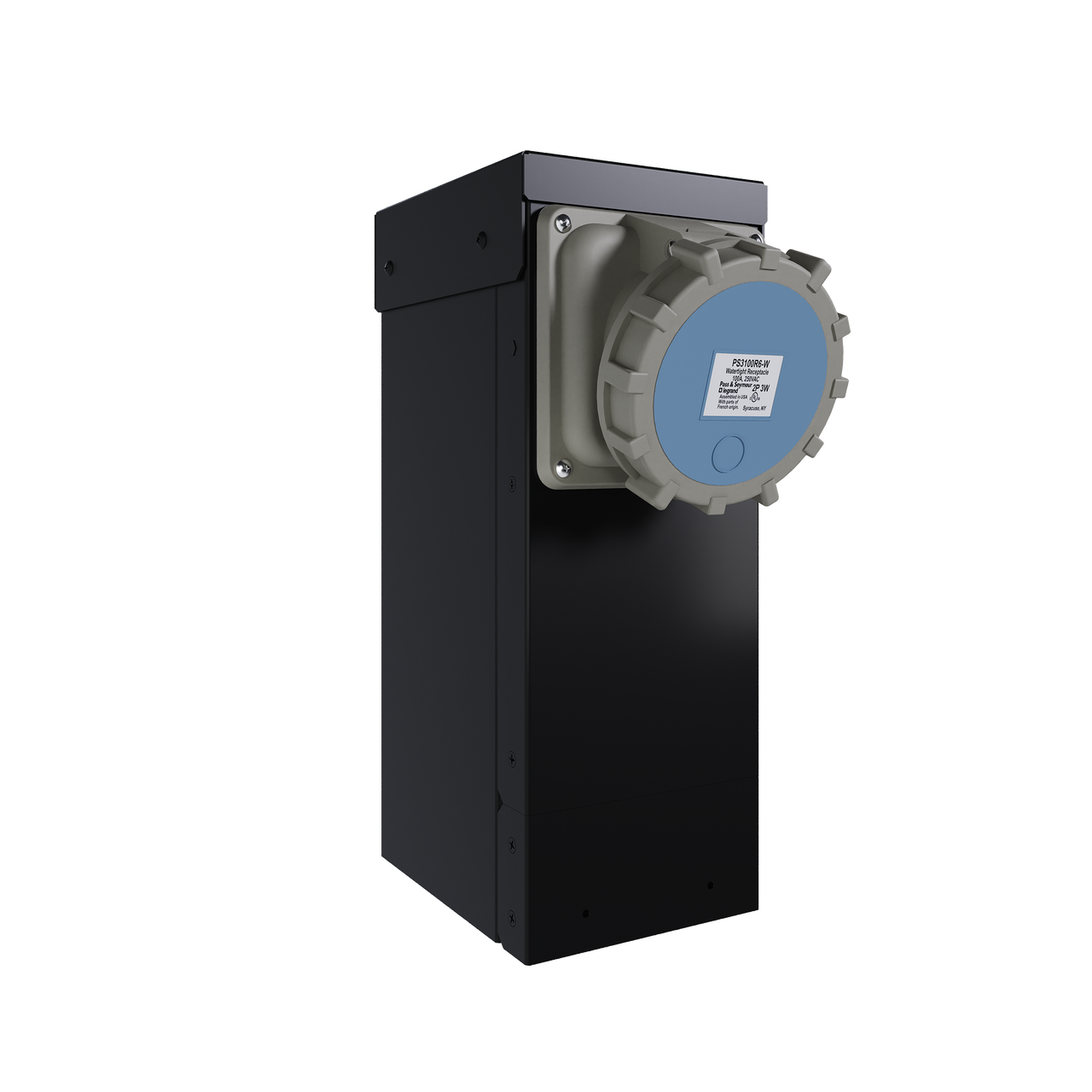

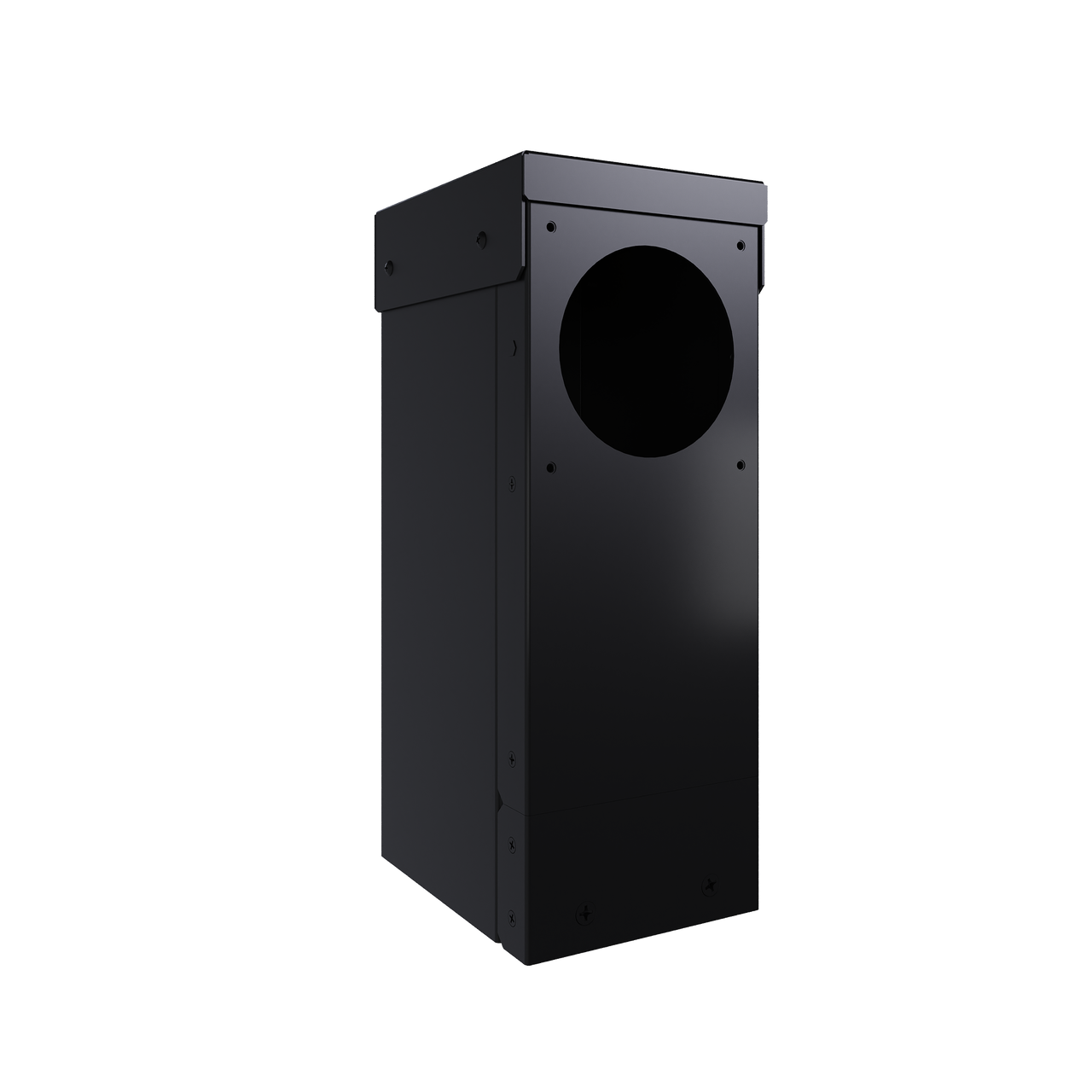

100A Power Pedestal 1G 16In Black

XPPPSHA16-BK Wiremold
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 9ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The 100A Pin & Sleeve Outdoor Power Pedestal delivers reliable, high‑amperage power in a permanent, UL‑listed solution designed for demanding outdoor environments. Built to support applications where traditional 30A or 60A options fall short, this pedestal enables outdoor spaces to accommodate larger loads without relying on temporary power or custom solutions. Engineered for long‑term outdoor use, the pedestal combines high‑power capability with durable, weather‑rated construction and a clean, architectural form. Flexible configuration options—including multiple heights and finish choices—allow it to integrate seamlessly into campuses, public spaces and event environments while supporting higher‑amperage power needs with reliable, long-lasting performance.
Color Black
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • High Amperage: 100 Amps is highest amperage on the market
  • Variety of Finishes: Available in green, brown, silver and black to meet any outdoor aesthetic
  • Pre-Wired & Unwired Options: Choose prewired for quick installation or unwired for full on-site customization

Specifications

General Info
Color Black
Type Power Pedestal
Material Steel
Application Sector Commercial, Entertainment, Hospitality, Parks, Transit
Product Line Wiremold
Country Of Origin United States
UPC Number 786776200867
Dimensions
Product Depth US 7.638 in
Product Height US 16.378 in
Product Length US 5.984 in
Product Width US 7.638 in
Listing Agencies / 3rd Party Agencies
cULus ListingNumber  E479489
cULus Listed  Yes
Additional Information
Energy Savings No
Technical Information
Amperage 100 A
Maximum Amperage Supported 100 A
Service Capacity Single
Enclosure Type NEMA 3R
Is Pre-Wired No
Number of Gangs 1
