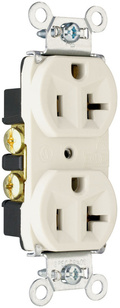

Hard Use Spec Grade Receptacle, Back & Side Wire, 20A, 125V, White
5362W
Pass & Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
eHard Use Spec Grade Duplex Receptacle Back & Side Wire 20amp 125volt Yellow
In Stock
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?
Features
- Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face.
- 8 hole internal screw-pressure-plate back wire terminals accept #10 - #14 AWG solid or stranded copper or copper-clad conductors.
- Terminal compartments isolated from each other for positive conductor containment.
- Tri-drive terminal and mounting screws.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Specifications
General Info
| Color | White | ||
| UPC Number | 785007536256 | ||
| Country Of Origin | Mexico | ||
| Product Line | Pass & Seymour | ||
| Standard | UL 498 |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes | ||
| cULus ListingNumber | 140596 |
Technical Information
| Number of Poles | Double Pole | ||
| Voltage | 125 V | ||
| Connection | Wire Ground | ||
| Wire Size | 4 AWG | ||
| Number of Wires | 3 |
