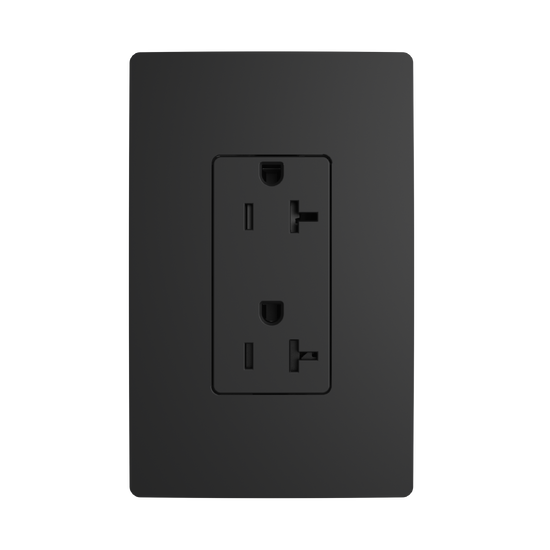

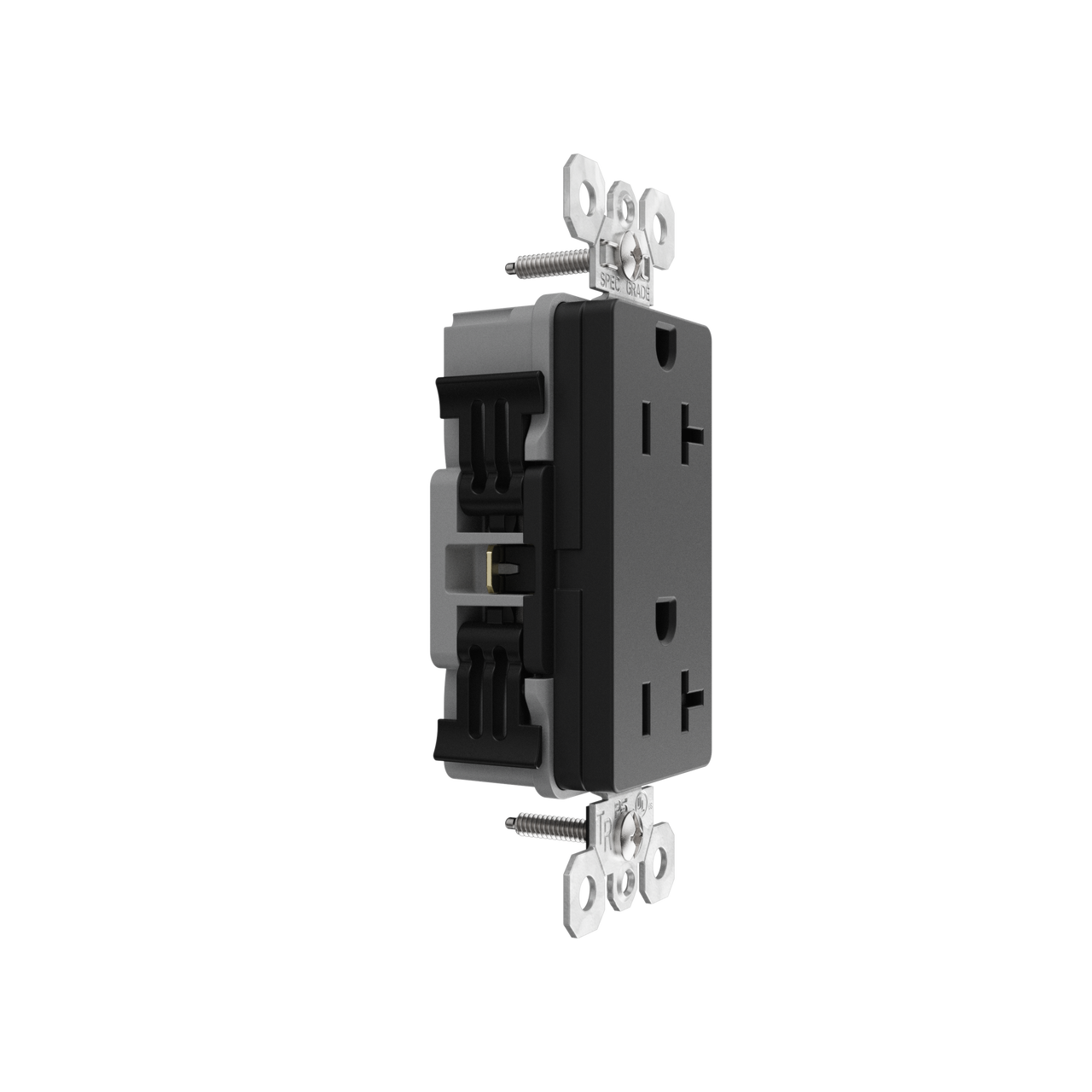

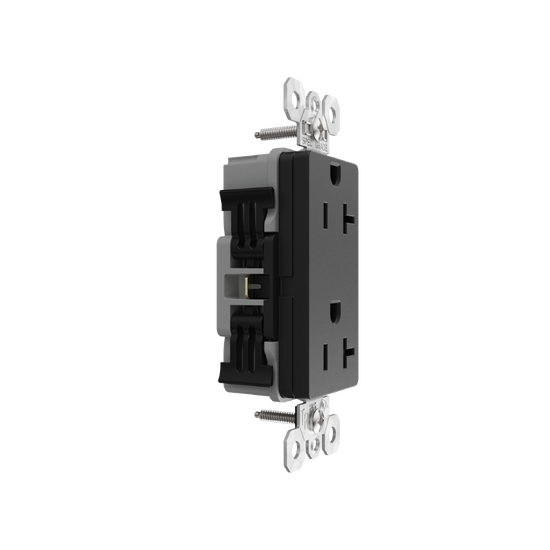

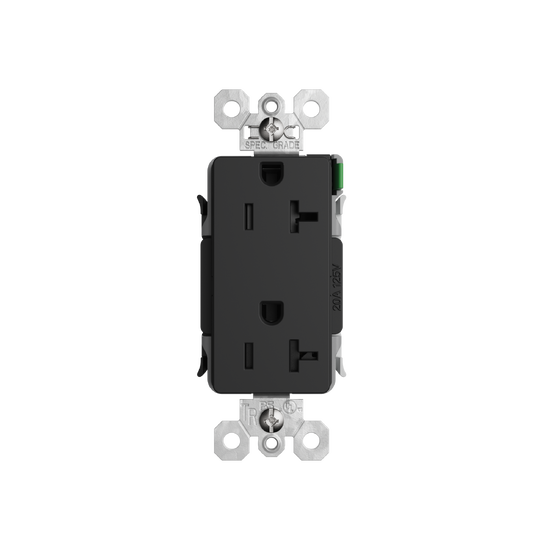

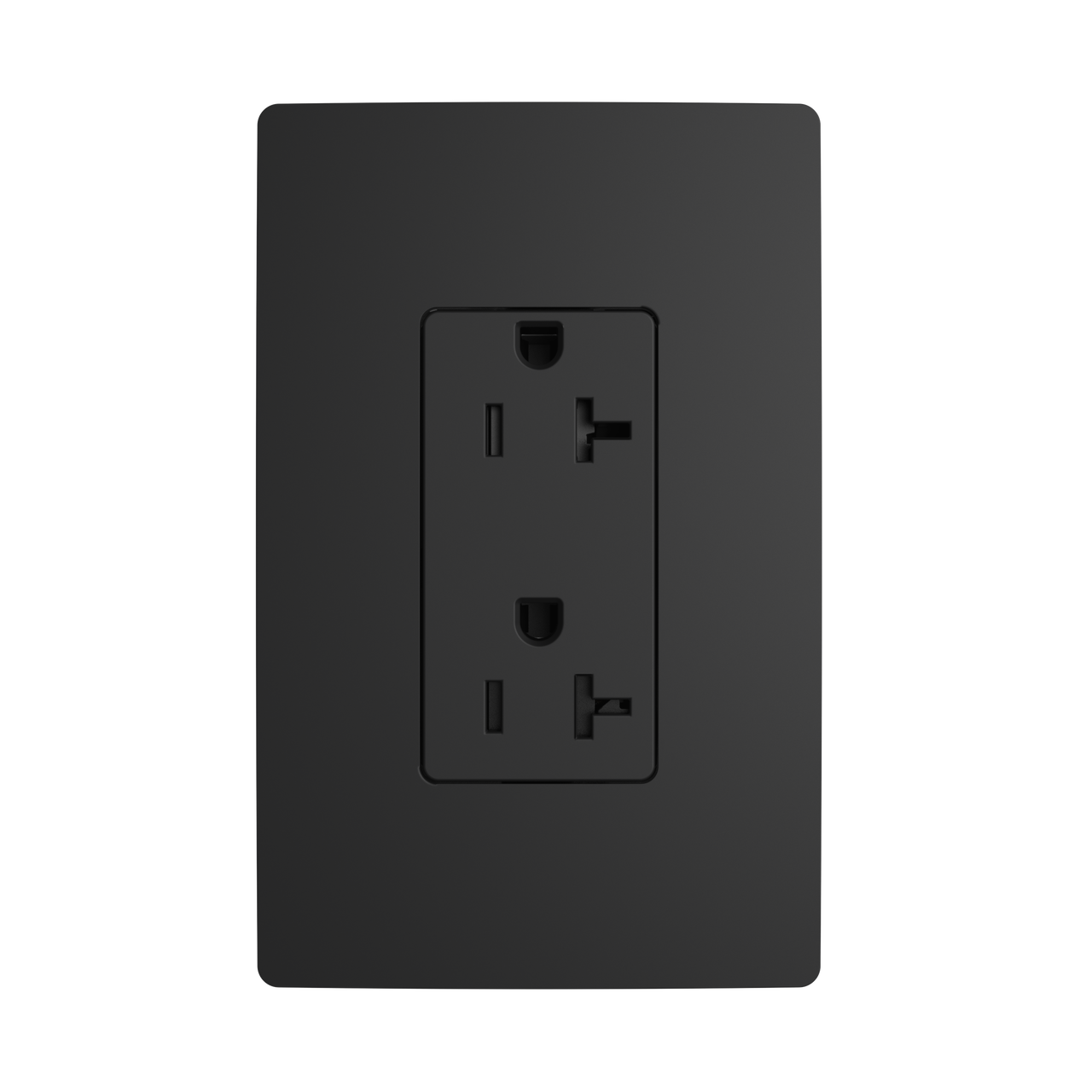

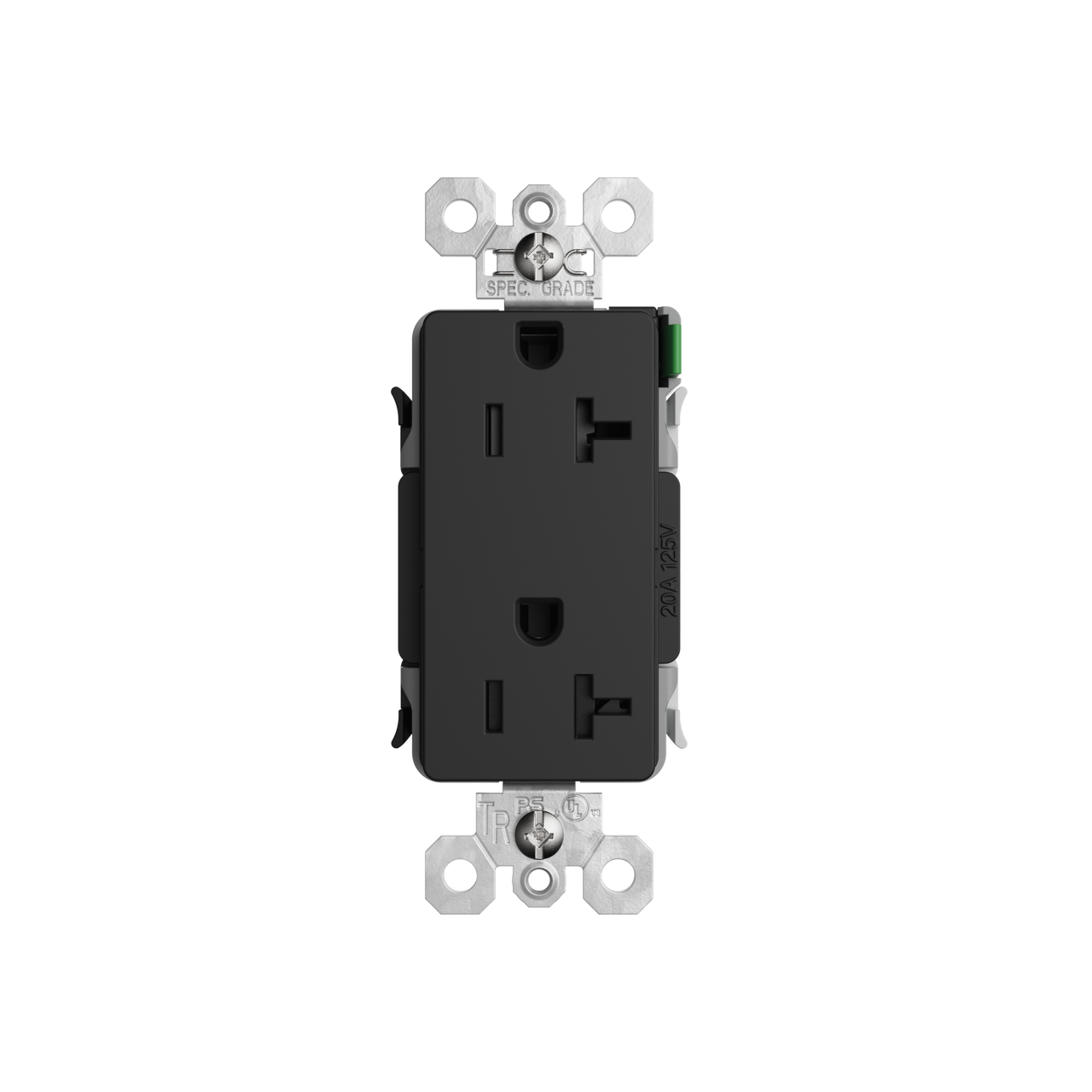

PowerHold™ Decorator Receptacle, 20A, Black

Color Black

Amperage 20 A

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Superior Wire Retention: With a retention force greater than 30 .lbs, our receptacle's unique wire retainer geometry ensures consistent, reliable connections that are twice as strong as the competition.
Sleek, Space-Saving Design: Up to 23% shallower than competitive devices, our receptacle offers a streamlined design without compromising on performance.
Error-Free Installation: Horizontal color-coded levers (white/neutral, black/hot, green/ground) reduce the risk of miswiring, while an audible snap confirms the lever is securely closed. **50% wider than the competition for better usability
Maximize Productivity: With installation times reduced to under a minute per device, our receptacle significantly boosts your productivity, enabling you to take on more projects and complete them ahead of schedule.
Fast Installation: Streamlines your workflow, making installations quicker and easier.
Boost Profitability: By slashing installation times and minimizing errors, our receptacle allows you to complete more work in less time, driving higher profitability on every project.
Built For Tomorrow: Dependable connections that stay secure during use, yet are easily changeable for future updates or renovations.
Terminal compartments isolated and fully encapsulated from each other for positive conductor containment
Easily accessed break-off, line and load-contact connecting tab for fast, easy split-circuit wiring.

General Info

Dimensions

Listing Agencies / 3rd Party Agencies

Additional Information

Energy Savings	No
RoHS Compliant	Yes		This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.

Technical Information

Amperage	20 A
Connection Location	Back Only
Temperature Rise	Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current
Wire Connection Type	Spring Clamp
Indoor/Outdoor	Indoor
NEMA Configuration Code	5-20R
Operating Temperature	-40°-60°C
Operating Temperature Max	60 °C
Operating Temperature Min	-40 °C
Terminal Accommodation	#14 AWG - #10 AWG
Voltage	250.0 V
