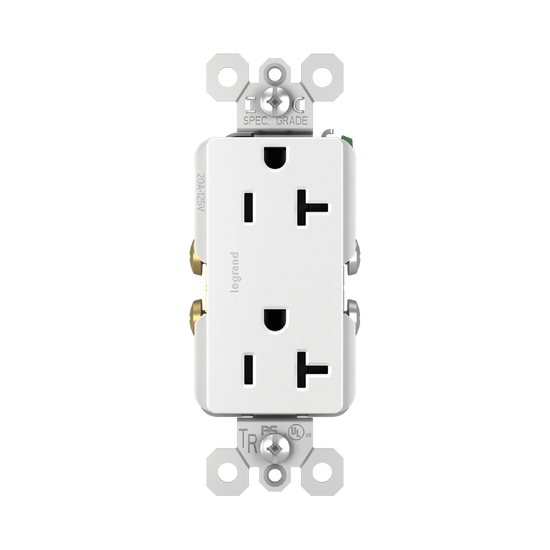

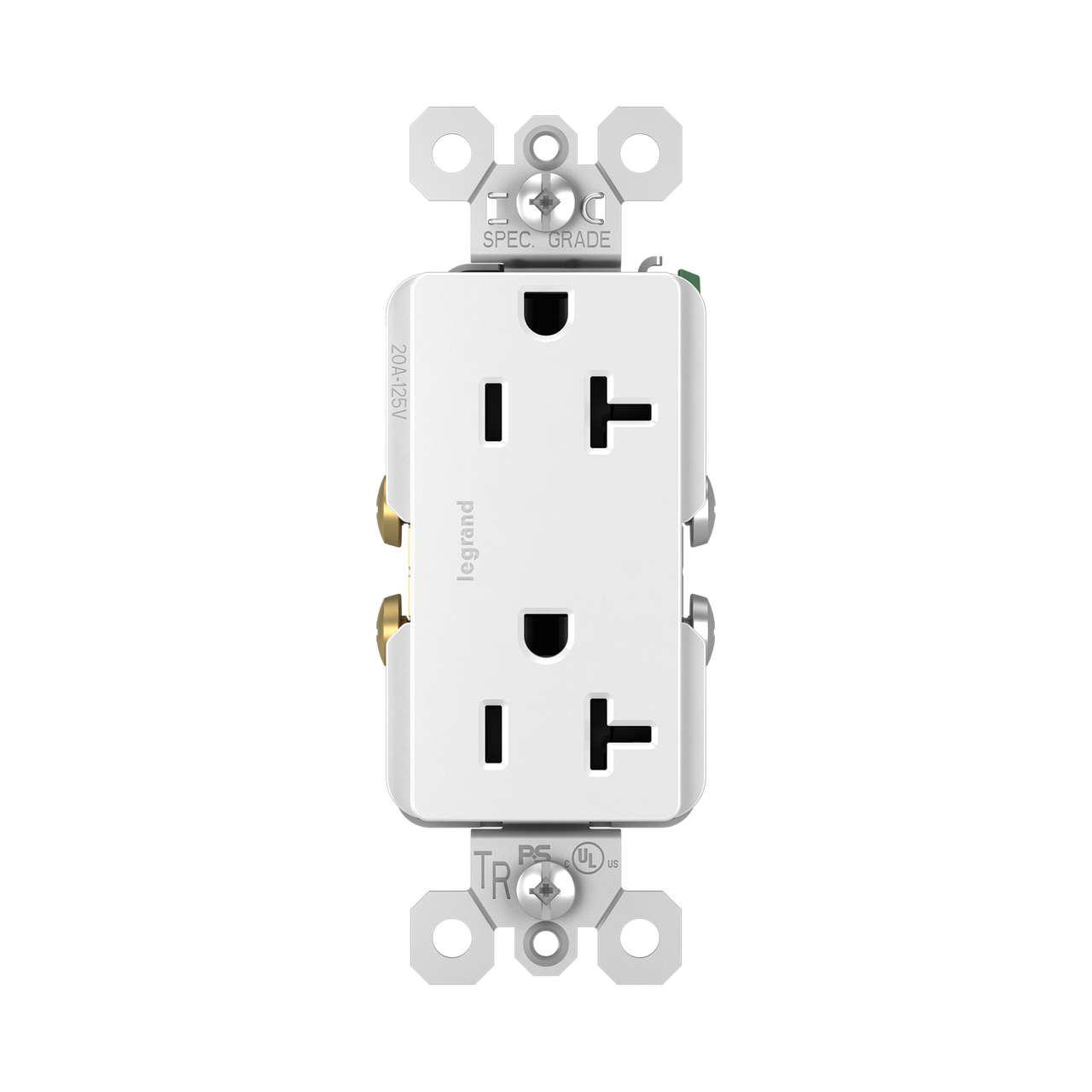

radiant® 20A 125V Tamper-Resistant Outlet, White

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 7ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Take a step up from standard with Legrand’s 20A/125V radiant® Tamper Resistant, Self-Grounding, Duplex Outlet. This tamper-resistant duplex 20-amp outlet installs easily for the basic power every home needs, while elevating your space with the sleek, clean lines of radiant® for a sophisticated look. To help prevent improper insertion of foreign objects and comply with NEC Article 406.12, these receptacles feature black "invisi-shutters" that disappear for an invisible effect preferred by end users. This outlet also includes a self-grounding feature that makes it ideal for residential and multi-dwelling applications. Pair with a screwless radiant® Wall Plate and other designer switches and outlets from the radiant® Collection for a cohesive design throughout the home. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Color White
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Ideal for Residential Applications & Multi-Dwelling units where 20A devices are required
  • Meets National Electric Code Tamper-Resistant requirements per Article 406.12
  • Black "Invisi-Shutters" disappear for an invisible effect
  • Side Wire Only accepts #12-#14 AWG
  • Auto-Ground Clip assures a positive ground connection is made
  • Pair with a screwless radiant wall plate and coordinate with other designer switches & outlets from the collection for a cohesive look.

Specifications

General Info
Product Line Pass & Seymour
Color White
Finish Glossy
Country Of Origin China
Receptacle Type Straight Blade
Number of Receptacles 2
Construction Injection molded plastic
Features Self-Grounding
Outlet Type Indoor, Self-Grounding, Tamper-Resistant
Package Quantity 1
Application Sector Residential
Standard RoHS, UL (UL498, E140596), cULus (E140596), CSA (C22.2 No. 42), NEMA (WD-1 & WD-6)
Warranty Type 1-Year Limited Warranty
Type Decorator, Duplex, Outlet
Dimensions
Product Width US 1.42 in
Product Weight US 0.122 lb
Product Depth US 1.03 in
Product Height US 4.2 in
Additional Information
RoHS Conformant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Listing Agencies / 3rd Party Agencies
CSA Listed Yes
cULus ListingNumber  UL498
cULus Listed  Yes
CSA File Number  C22.2 No. 42
Technical Information
Is Tamper-Resistant Yes
Connection Side Wire Only
Number of Wires 3
Amperage 20 A
Number of Poles Double Pole
Wire Size 14 - 12 AWG
Is Weather Resistant No
Indoor/Outdoor Indoor
NEMA Configuration Code NEMA 5-20
Mounting Type Screwless
Voltage 125.0 V
Environmental Conditions 98% (relative humidity, non-condensing)
