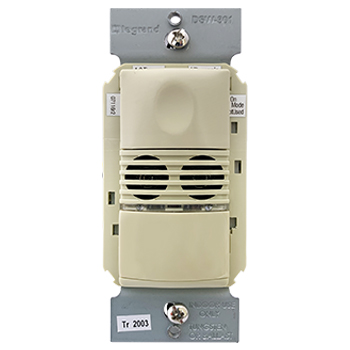

Multi-Way Dual Technology Occupancy Sensor, Single-Relay, 120/277V, Ivory

The WDS10 dual technology wall switch sensor turns lights OFF and ON based on occupancy.

Color Ivory

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Selectable walk-through mode turns lights off three minutes after initial occupancy if no motion is detected after the first 30 seconds
Test mode allows quick and easy adjustments
Selectable audible alert for impending shutoff
In automatic mode, sensor returns automatically to Auto-ON after lights are turned off manually
ideal for presentations
Four occupancy logic options to customize control to meet application needs
Zero-crossing for long relay life

General Info

Color	Ivory
Product Series	DSW-301
Type	Occupancy Sensor
Material	ABS
Finish	Gloss
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	China
Features	Adjustable Time Delay, Indicator Lights, Light Level Sensor, Sensitivity Adjustment, Test Mode, Walkthrough Mode
Installation Location	Wall
Switch Type	Motion Sensor, Push
Warranty Type	5-Year
UPC Number	785007501698

Dimensions

Additional Information

Product Has Potential to Contribute to LEED	Yes		This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings	Yes

Technical Information

On Function	Selectable Auto/Manual
Requires Neutral Wire	No
Wire Connection Type	Flying Leads
Frequency Band	60 Hz
Indicator	PIR Detection LED, Selectable audible alert for impending shutoff, Ultrasonic Detection LED
Indoor/Outdoor	Indoor
Input Voltage	120/277 VAC
Light Level Adjustment	8-180 fc
Load Rating	1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Location Rating	Dry
Mounting Type	In-Wall
Number of Buttons	1
Number of Poles	Multi-Location
Timer Duration	15 Minutes, 30 Minutes, 5 Minutes
Operating Temperature	0°-55°C, 32°-131°F
Operating Temperature Max	131 °F
Operating Temperature Min	32 °F
Operating Humidity	5-95% RH (Non-Condensing)
Sensing Range	Major motion: PIR 35x30 ft, Ultrasonic 20x20 ft,Minor motion: PIR 20 x 15 ft, Ultrasonic 15x15 ft
Sensitivity Adjustment	PIR (Min/Max), Ultrasonic (0-100%)
Sensor Type	Occupancy
Sensor Technology	Dual Technology, Passive Infrared (PIR), Ultrasonic
Sensor Coverage	1050 sq ft
Sensor Coverage Pattern	180 °
Storage Temperature	23° - 176° F, -5° - 80° C
