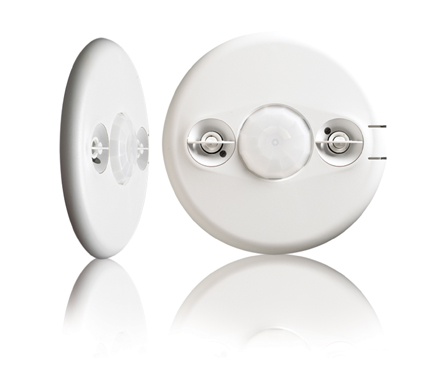

Dual Technology Low Profile Ceiling Mount Occupancy Sensor 100-347 VAC 360°

The low profile CDS10 dual technology occupancy sensor combines the benefits of passive infrared (PIR) and ultrasonic technologies.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

General Info

Color	White
Product Series	DT-355
Type	Occupancy Sensor
Material	ABS
Finish	Gloss
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	China
Features	Adjustable Time Delay, Indicator Lights, Light Level Sensor, Sensitivity Adjustment, Test Mode, Walkthrough Mode
Installation Location	Ceiling
Switch Type	Motion Sensor
Warranty Type	5-Year
UPC Number	785007501735

Dimensions

Additional Information

Product Has Potential to Contribute to LEED	Yes		This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings	Yes

Technical Information

On Function	Auto On
Wire Connection Type	Flying Leads
Indicator	PIR Detection LED, Ultrasonic Detection LED
Indoor/Outdoor	Indoor
Input Voltage	120/230/277/347 VAC
Light Level Adjustment	10-300 fc
Load Rating	1200 W @ 230-347 VAC, 800 W @ 120 VAC
Location Rating	Dry
Mounting Type	2-1/4 in Deep J-Box, 4 in Octagonal J-Box, Surface
Timer Duration	30 Seconds, 5-30 Minutes
Operating Temperature	0°-55°C, 32°-131°F
Operating Temperature Max	131 °F
Operating Temperature Min	32 °F
Operating Humidity	5-95% RH (Non-Condensing)
Sensing Range	36 ft
Sensitivity Adjustment	PIR (Min/Max), Ultrasonic (Min/Max)
Sensor Type	Occupancy
Sensor Technology	Dual Technology, Passive Infrared (PIR), Ultrasonic
Sensor Coverage	1000 sq ft
Sensor Coverage Pattern	360 °
Storage Temperature	23° - 176° F, -5° - 80° C
