Vantage's Legacy AC Terminal Boards are sold and installed separately from the enclosures. This allows the installer to use different module models inside the enclosure. AC terminal boards can be ordered in a kit that includes the left and right side boards or individually.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features

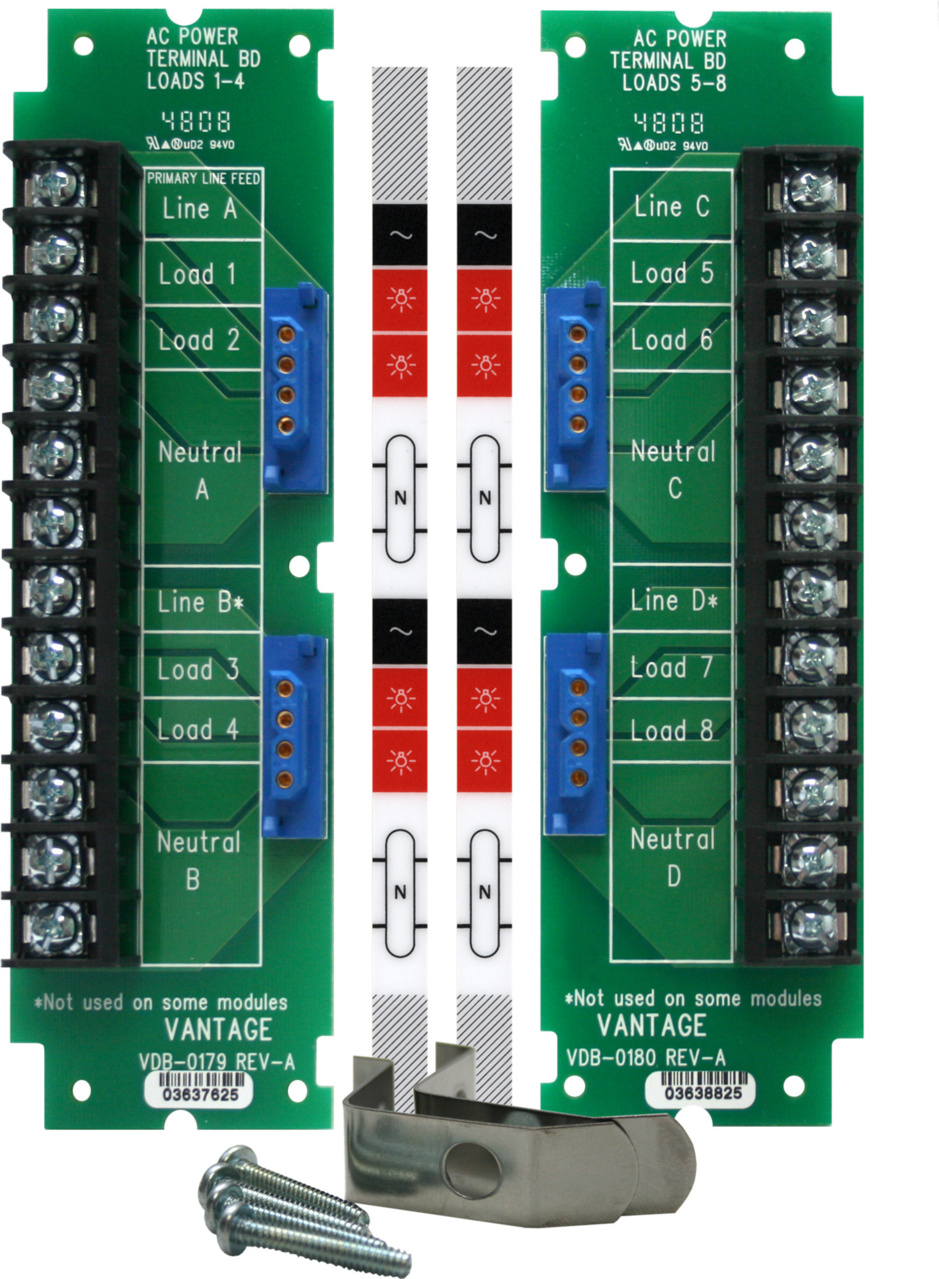

- Includes: One VSUB172 (left board), one VSUB173(right board), four Screws, two Spring clips, left/right load labels
- Supports the following legacy modules: MDS8RW101/102 Dimmers, MDR8RW101/102 Relays, EDIMMOD Electronic Dimmers, FANMOD Ceiling Fans, SD4008A-120 Dimmers, SD9008A-277 Dimmers, and AR8008-120 Relay
Specifications
General Info
| Type | Controller, Terminal Board | ||
| Application Sector | Commercial, Residential | ||
| Product Line | Vantage | ||
| Country Of Origin | China | ||
| Warranty Type | 5-Year | ||
| UPC Number | 804428058014 |
Dimensions
| Product Depth US | 0.875 in | ||
| Product Height US | 7.5 in | ||
| Product Width US | 2.25 in | ||
| Product Weight US | 11.9 oz |
Listing Agencies / 3rd Party Agencies
| cUL Listed | Yes |
Additional Information
| Energy Savings | No |
Technical Information
| Compatibility | InFusion | ||
| Indoor/Outdoor | Indoor | ||
| Operating Temperature | 0°-40°C, 32°-104°F | ||
| Storage Humidity | 5-95% RH (Non-Condensing) | ||
| Wire Gauge | 14-12 AWG |
