Standard Dimming Module Terminal Kit

TSDM-KIT Vantage
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 10ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Vantage's AC Terminal Boards are sold and installed separately from the enclosures. This allows the installer to use different module models inside the enclosure. The TSDM-KIT supports the SDM12-EM Module.
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Product Details

Vantage's AC Terminal Boards are sold and installed separately from the enclosures. This allows the installer to use different module models inside the enclosure. The TSDM-KIT supports the SDM12-EM Module.
  • Terminal boards support 12 loads as well as four line feeds and 16 neutrals.

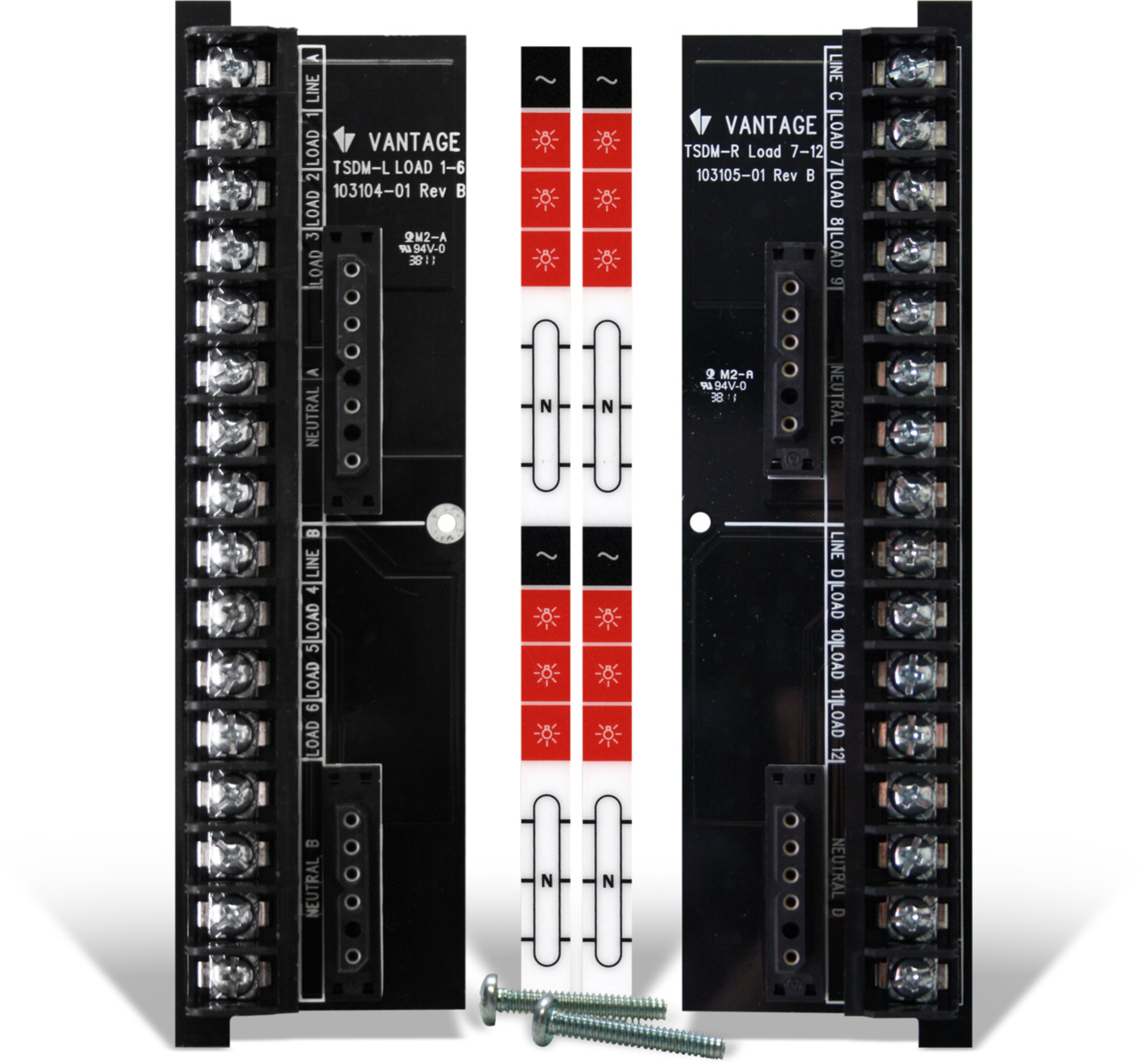

  • Includes one TSDM-L (6 load, left board), one TSDM-R (6 load, right board), module load labels (one pair), two #6-32 x 7/8 Screws

Specifications

General Info
Product Type Kit, Load Controller
Application Sector Commercial, Residential
Product Line Vantage
Country Of Origin China
Warranty Type 5-Year
UPC Number 804428053989
Dimensions
Product Depth US 0.875 in
Product Height US 7.8 in
Product Width US 2.125 in
Listing Agencies / 3rd Party Agencies
cUL Listed  Yes
Additional Information
Energy Savings No
Technical Information
Compatibility InFusion
Indoor/Outdoor Indoor
Operating Temperature 0°-40°C, 32°-104°F
Storage Humidity 5-95% RH (Non-Condensing)
Wire Gauge 10-14 AWG
