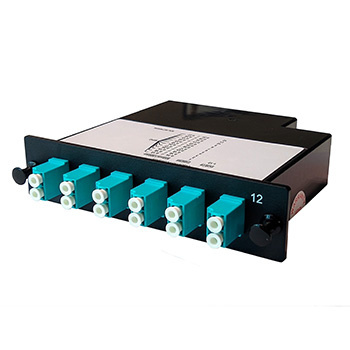

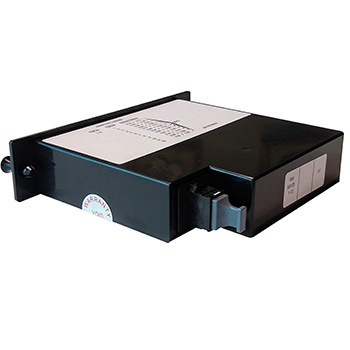

Infinium Core M2 Cassette - 12 Fiber - LC Duplex to MPOM - OM4 - Universal Polarity
LM2-LC12H
Ortronics
Bazaarvoice SAP Hybris Integration Version 2.8.1
Q-Series M2 Standard Density Cassettes are part of a complete fiber solution. When combined with matched Infinium Trunks and Infinium Patch Cable Assemblies the solution enables industry leading pre- terminated performance and universal polarity for simple, fast and consistent and simplified installation. Compatible with Q-Series Rack Mount or Wall Mount
Fiber Enclosures.
Fiber Type
Multi-Mode OM4
- Multi-Mode OM4
- Single-Mode
Number of Ports
12
- 12
- 24
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Low Loss System: When combined with Infinium Core Trunks and Infinium Core Patch Cords Total System Loss 2.5 dB Total Return Loss 19 dB
- Infinium Core: - Single-mode total channel connection loss: 2.1 dB - Single-mode total channel connection return loss: 49 dB - Multimode total channel connection loss: 2.5 dB - Multimode total channel connection return loss: 19 dB
- High Density: 12 or 24-fiber cassette compatible with Q-Series Enclosures
- Fiber Type: Supports either Single-mode OS2 or Multimode Infinium Core fiber
- Polarization: Universal
- LC adapter with Internal shutter: Provides eye safety by attenuating laser light when the mated connector is removed
- 100%automatic shutter mechanism requiring no operator handling of the shutter door
- Compatible with standard LC connectors
- It keeps adapter’s interior clean from dust
- You can see the visible light through the adapter
Specifications
General Info
Color | Aqua | ||
Type | Cassette | ||
Application Sector | Commercial, Data Center | ||
Product Line | Ortronics | ||
Country Of Origin | Mexico | ||
Features | Shuttered | ||
Included | Serial Number Label | ||
Warranty Type | 5-Year | ||
Standard | TIA-568-C.3 | ||
UPC Number | 662875031024 |
Dimensions
Product Depth US | 4.87 in | ||
Product Height US | 1.19 in | ||
Product Width US | 5.13 in |
Additional Information
RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
Alignment Sleeve Material | Zirconia | ||
Compatibility | LM2, OFP | ||
Connectivity Footprint | Q-Series Standard Density | ||
Connector 1 | LC Female | ||
Connector 2 | MPO Female | ||
Durability | 500 matings | ||
Fiber Optic Cable Type | OM3, OM4 | ||
Number of Fibers | 12 | ||
Maximum Insertion Loss | 1.25 dB | ||
Polarity Type | Universal | ||
Typical Insertion Loss | 0.3 dB | ||
Number of Ports | 12 | ||
Operating Temperature | -10°-60°C | ||
Operating Temperature Max | 60 °C | ||
Operating Temperature Min | -10 °C | ||
Operating Humidity | 0-80% RH (Non-Condensing) | ||
Performance Level/Tier | Core | ||
Return Loss | 52 dB | ||
Shuttered Adapters | Yes | ||
Simplex/Duplex | Duplex | ||
Single/Multimode | Multimode | ||
Storage Temperature | -40° - 75° C |
