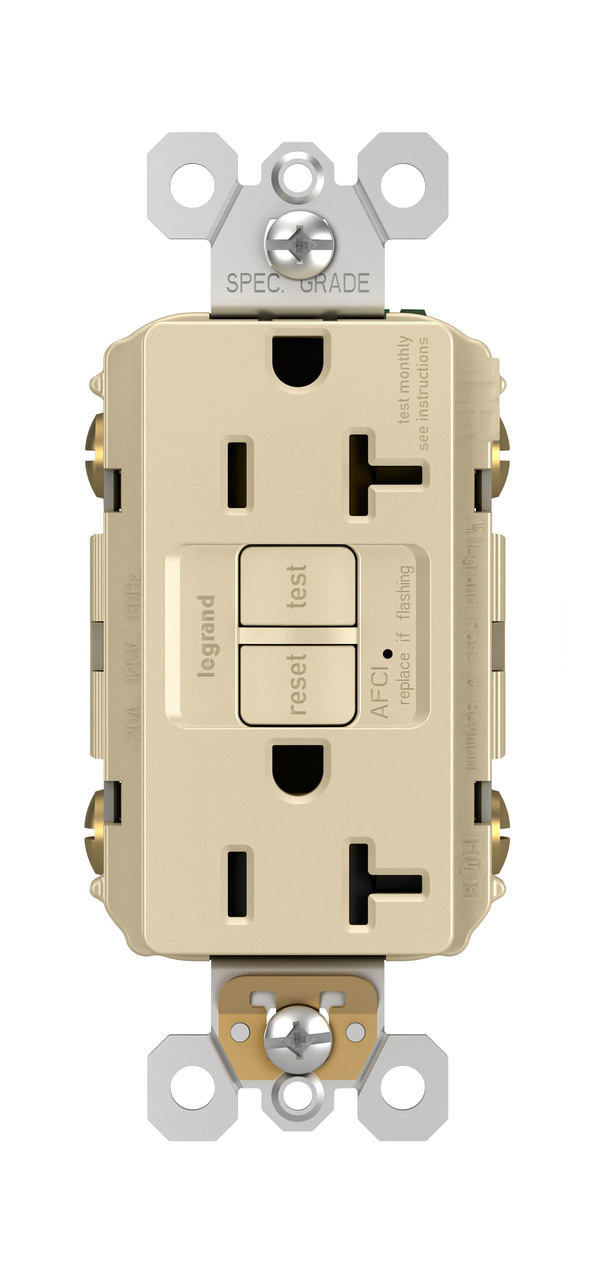

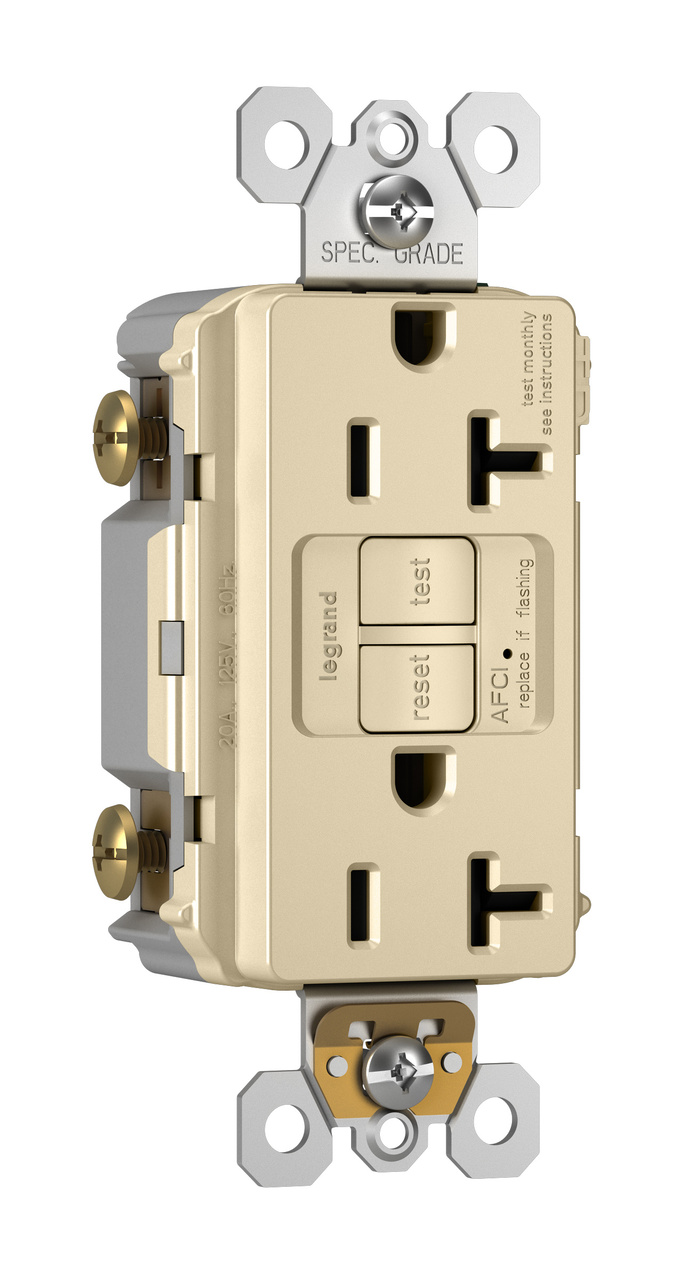

radiant® 20A Tamper-Resistant AFCI Receptacle, Ivory

  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 10ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

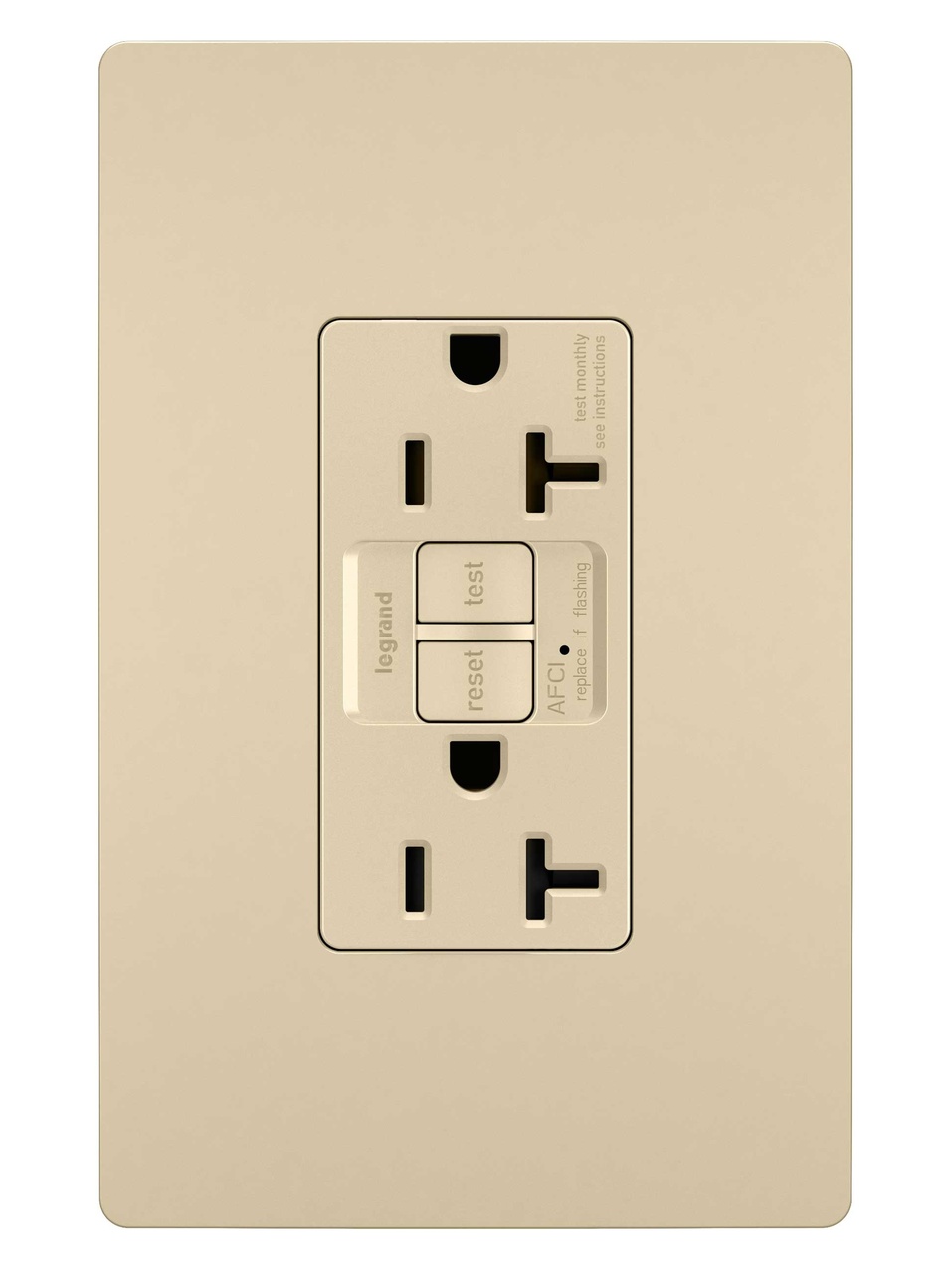

By detecting arc faults and deenergizing the circuit, the radiant® Tamper-Resistant AFCI Receptacle is designed to protect against electrical fires and follow the National Electrical Code (NEC). This receptacle features an indicator light and accessible test and reset buttons that make trips easier to identify and resolve compared to AFCI breaker alternatives. Via a feed-thru wiring configuration, all outlets installed downstream are also protected. As a part of the radiant® Collection, it also features sleek, clean lines for a sophisticated look. Made for use with screwless Wall Plates from the Collection, sold separately.
Color Ivory
Amperage 20 A
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Protects against fire caused by arc-fault occurrences. Unlike breaker alternatives, AFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect.
  • Test and rest buttons located on face of device at point of use, making it easier to fix trips directly on the device.
  • SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly
  • Auto-ground clip assures a positive ground to a metal box
  • Compliant with NEC AFCI requirements
  • Easier installation than breakers; fits any wall box; no need to match brand of breaker box
  • Accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire

Specifications

General Info
Color Ivory
Application Sector Residential
Product Line Pass & Seymour
Country Of Origin China
Features Durable, Indicator Lights
Wall Plate Included Yes
Number of Receptacles 2
Outlet Type Tamper-Resistant
Warranty Type 1-Year Limited Warranty
UPC Number 785007127874
Dimensions
Product Depth US 1.367 in
Product Height US 4.19 in
Product Length US 4.19 in
Product Width US 1.74 in
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Additional Information
Energy Savings No
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Amperage 20 A

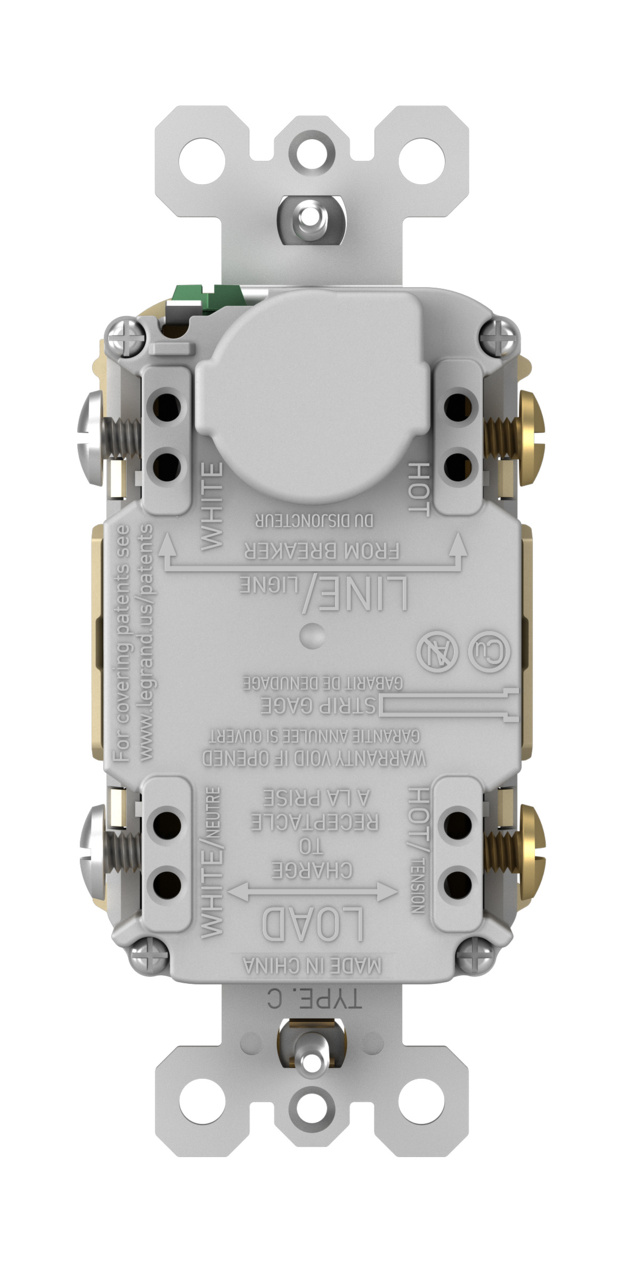

Connection Location Back and Side
Wire Connection Type Screw Terminal
Connection Back and side wire
Indoor/Outdoor Indoor
Mounting Type Box
NEMA Configuration Code 5-20R
Number of Gangs 1
Number of Poles 2 Pole
Number of Wires 3
Operating Temperature -40°-60°C
Operating Temperature Max 60 °C
Operating Temperature Min -40 °C
Terminal Accommodation #14 AWG - #10 AWG
Trip Range 5±1 mA
Voltage 125.0 V
