radiant® 20A Tamper-Resistant AFCI Receptacle, White

AF202TRW radiant Collection
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 15ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

AFCI outlets from the radiant® Collection detect and cut power during arc-fault occurrences, reducing the risk of electrical fires. Meeting National Electrical Code as an alternative to AFCI breakers, these outlets make it easier to recognize and fix trips right where they happen. Maximize safety, in style, with AFCI protection featuring the sleek, clean lines of radiant. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Color White
Amperage 20 A
Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Protects against fire caused by arc-fault occurrences. Unlike breaker alternatives, AFCI outlets make it easier to fix trips with a convenient reset button on the outlet.
  • Protects children with a patented tamper-resistant shutter system that prevents improper insertion of foreign objects, complete with "invisi-shutters" for an invisible effect.
  • Test and rest buttons located on face of device at point of use, making it easier to fix trips directly on the device.
  • SafeLock® Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Extends GFCI protection to "downstream" outlets when used with feed-thru wiring configuration. Note: Will cut power to face and downstream outlets if wired incorrectly
  • Auto-ground clip assures a positive ground to a metal box
  • Compliant with NEC AFCI requirements
  • Easier installation than breakers; fits any wall box; no need to match brand of breaker box
  • Accepts #14–#10AWG solid & stranded wires, Copper-clad aluminum, and copper wire
Specifications

Specifications

General Info
Color White
Type AFCI, Tamper-Resistant
Finish Satin
Application Sector Residential
Product Line Pass & Seymour
Country Of Origin China
Construction Thermoplastic
Features Durable, Indicator Lights
Wall Plate Included Yes
Number of Receptacles 2
Outlet Type Tamper-Resistant
Warranty Type 1-Year Limited Warranty
Standard cULus Listed 1699A, File #E363109, Federal Specification WC596. UL498, Standard CSA-C22.2 No. 42
UPC Number 785007127881
Dimensions
Product Depth US 1.367 in
Product Height US 4.19 in
Product Length US 4.19 in
Product Width US 1.74 in
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Additional Information
Energy Savings No
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Amperage 20 A

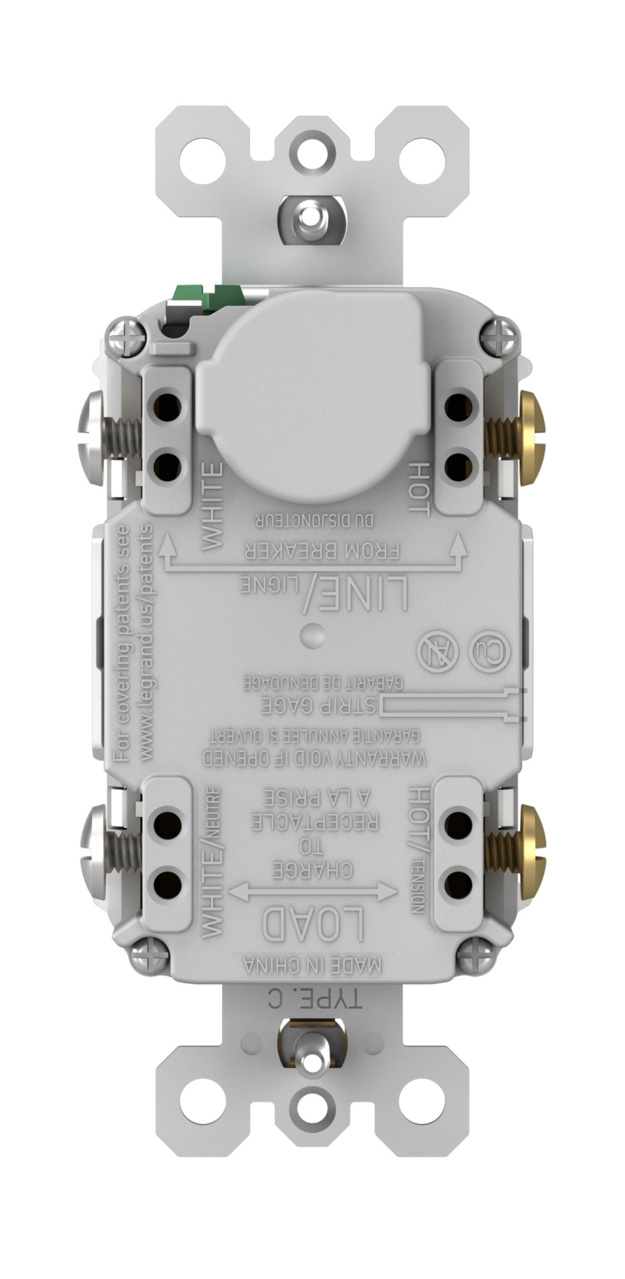

Connection Location Back and Side
Seismic Tested No
Wire Connection Type Screw Terminal
Connection Back and side wire
Connection Type Wired
Environmental Conditions 0 to 95% (relative humidity, non-condensing)
Indoor/Outdoor Indoor
Is Tamper-Resistant Yes
Mounting Type Box
NEMA Configuration Code 5-20R
Number of Gangs 1
Number of Poles 2 Pole
Number of Wires 3
Operating Temperature -40°-60°C
Operating Temperature Max 60 °C
Operating Temperature Min -40 °C
Output Current 20A
Output Voltage 125 V
Terminal Accommodation #14 AWG - #10 AWG
Trip Range 5±1 mA
Voltage 125.0 V
