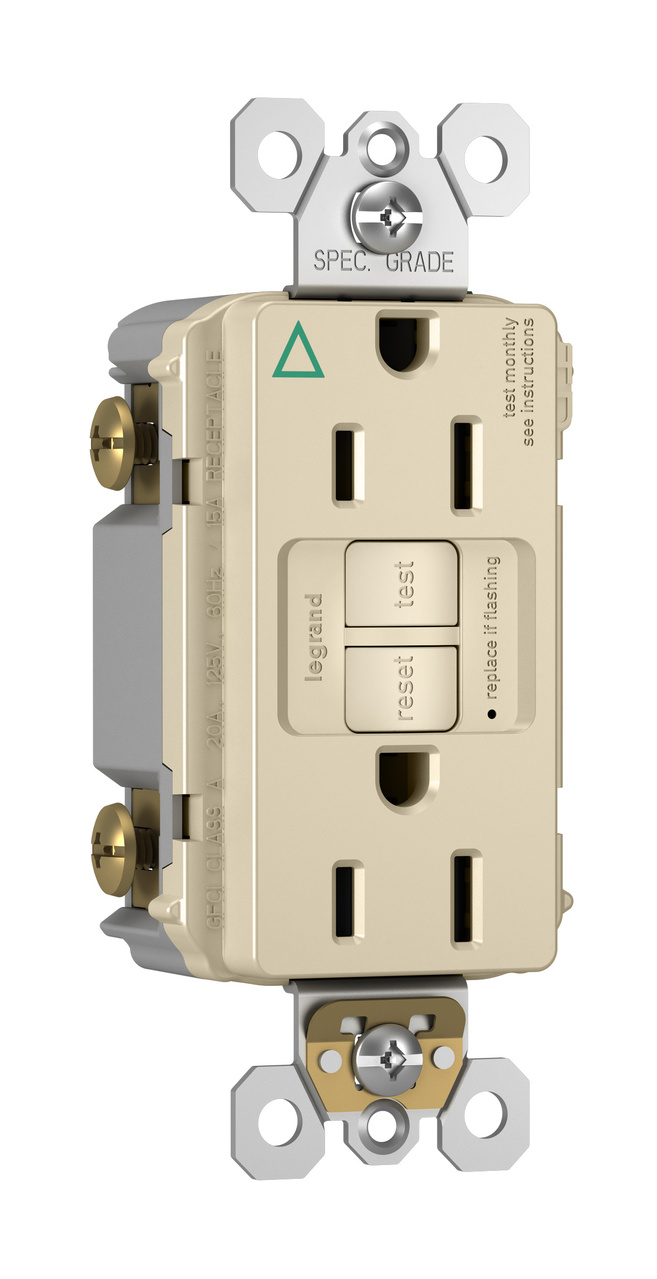

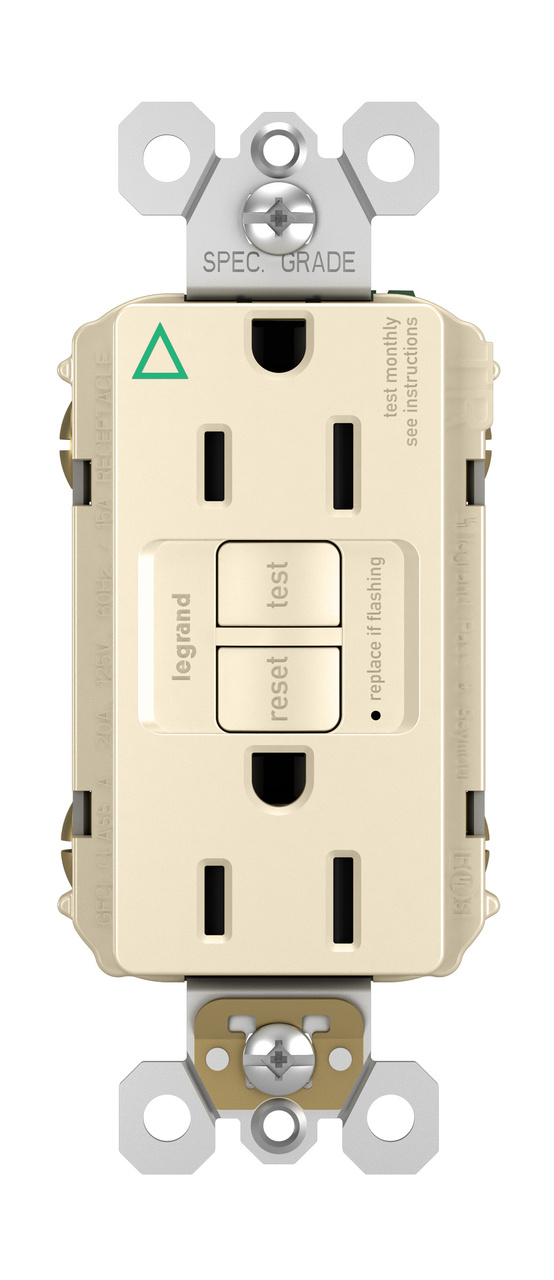

Spec-Grade Isolated Ground Tamper-Resistant 15A Self-Test Duplex GFCI, Light Almond
1597IGTRLA
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock™- Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Application Sector
Commercial
- Send
- Save as PDF
-
Favorite thisAdded to Favorites Go to favoritesRemove from favorites?
Specifications
General Info
| Color | Light Almond | ||
| UPC Number | 785007048087 | ||
| Country Of Origin | China | ||
| Product Line | Pass & Seymour | ||
| Application Sector | Residential/Commercial | ||
| Standard | cULus, UL Listed, FSUL |
Listing Agencies / 3rd Party Agencies
| cULus Listed | Yes |
Technical Information
| Number of Poles | Double Pole | ||
| Voltage | 125 V | ||
| Trip Range | 4 to 6 mA | ||
| Connection | Back and Side Wire | ||
| Frequency Rating | 60 Hz | ||
| Interrupt Rating | 4 A | ||
| Environmental Conditions | 95% Humidity, UL 94 V2 |
Resources
Cutsheet
Brochure
Instruction Sheet
Guide Form Specifications
