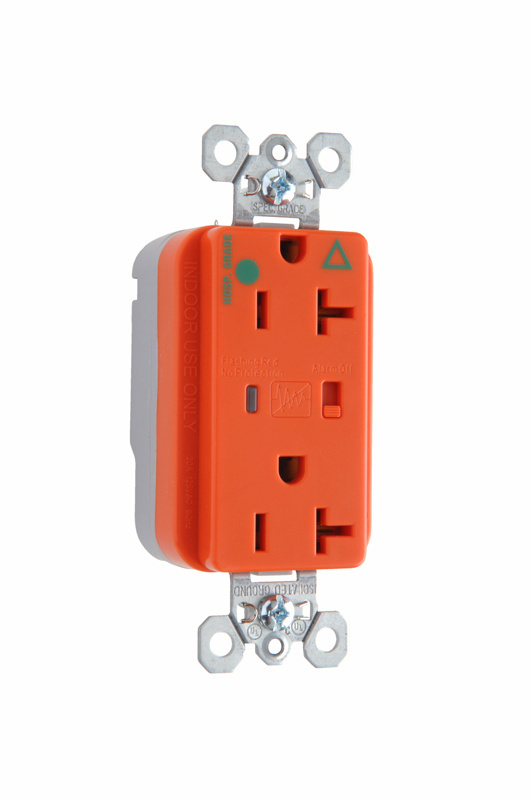

PlugTail® Hospital Grade Isolated Ground Surge Protective Duplex Receptacle, Orange

PTIG8300OSP Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 1500ms
  • bvseo-msg: Execution timed out, exceeded 1,500ms;

PlugTail®Hospital Grade Isolated GroundSurge ProtectiveDuplexReceptacle offers increased transient protection, reliability and protection notification (Audible Alarm with LED Indicator). 20 A 125 V, Orange . For detailed PlugTail® information, visit our PlugTail® Headquarters.
Color Orange
Application Sector Commercial


  • .036 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Crimped and welded contacts.
  • Ultrasonically welded polycarbonate connector housing secures terminations and conductors in a UL Listed, finger safe housing.
  • Large brass contacts snugly terminate on device blade terminals.
  • Pre-stripped connector leads fasten to conductors, easier than standard pigtails.
  • Auto-ground clip assures positive ground.
  • For covering patents, see


General Info
UPC Number 785007020175
Country Of Origin China
Product Line Pass & Seymour
Application Sector Residential/Commercial
Standard CSA Listed, cUL, UL Listed, RoHS, FSUL
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Voltage 125 V
Connection Built-In Connector
Class IG
Frequency Rating 60 Hz Hz
Phase Single
Environmental Conditions UL94 V2
Type of Indicators LED, Audible Alarm
