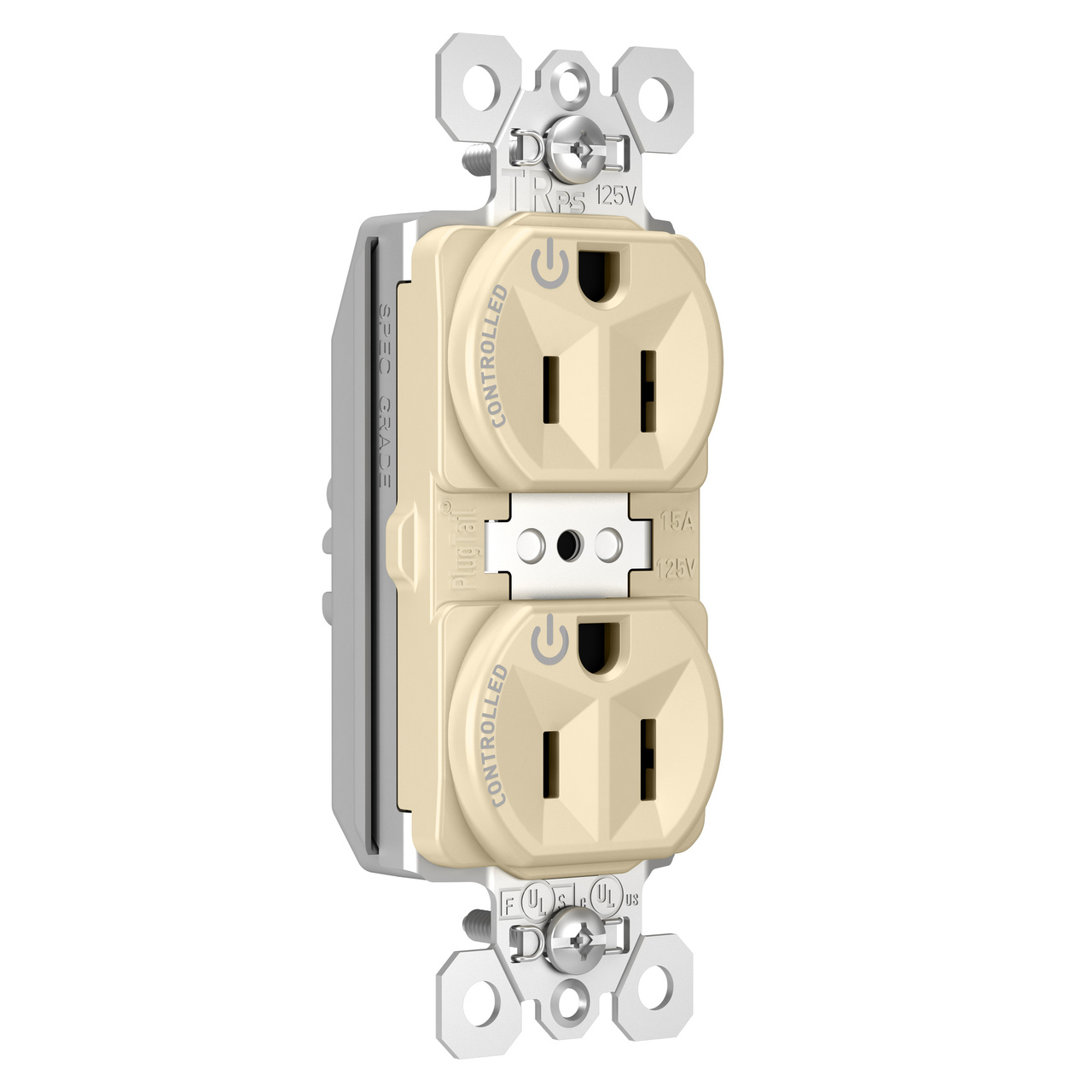

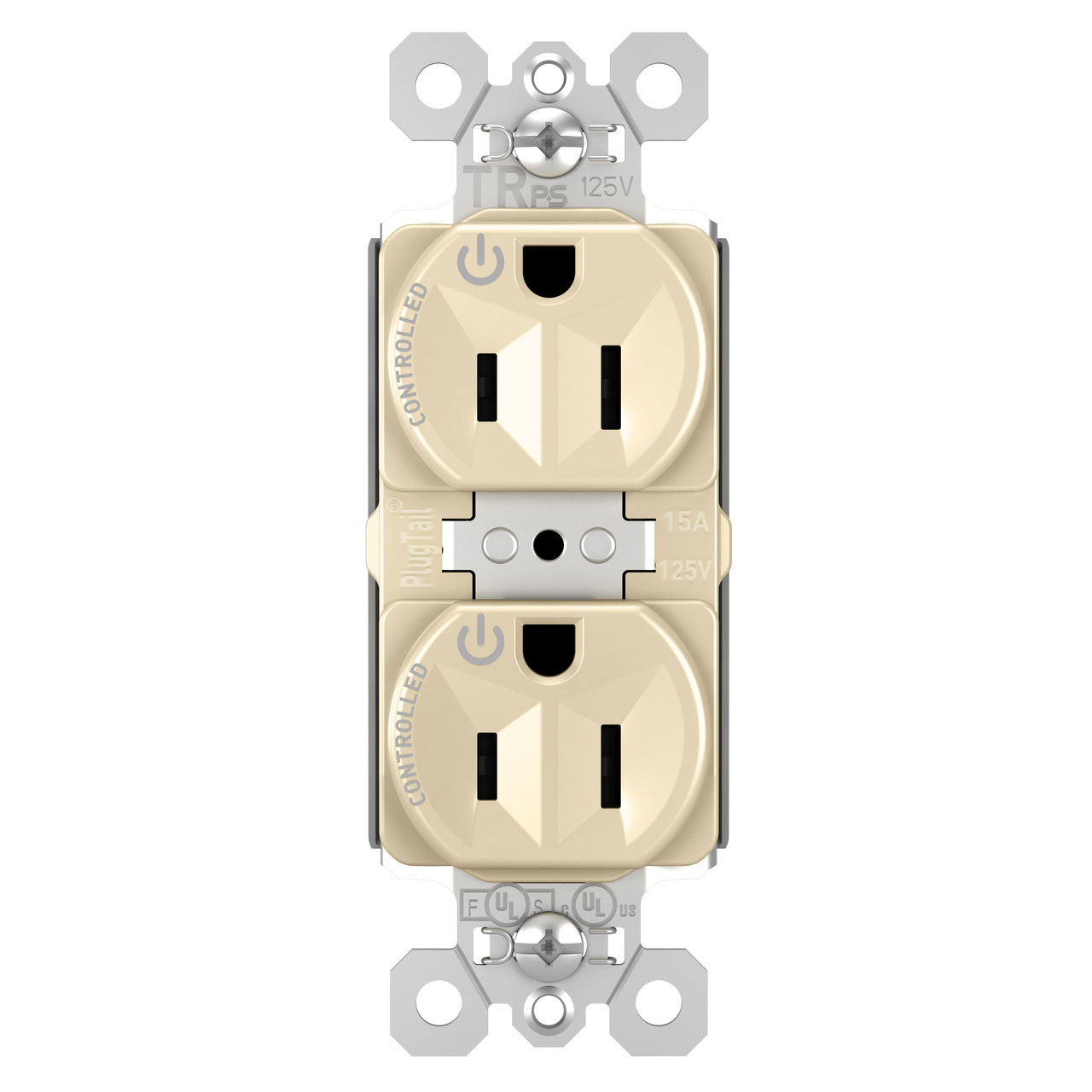

PlugTail® Tamper-Resistant Heavy-Duty Spec Grade Plug Load Controllable Receptacle, 15A, 125V, Ivory

PTTR5262CDI Pass and Seymour
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 1501ms
  • bvseo-msg: Execution timed out, exceeded 1,500ms;

These durable, dependable receptacles feature a permanently marked, differentiated solution that meets all necessary code requirements. For detailed PlugTail® information, visit our PlugTail® Headquarters. For detailed Tamper-Resistant receptacle information, visit our Tamper-Resistant Receptacles page.
Color Ivory

In Stock


  • .032 inch thick, brass, triple-wipe power contacts for lasting retention.
  • Plated steel wrap strap design for maximum durability and corrosion resistance.
  • No exposed terminals create a finger safe application before, during, and after installation.
  • Built-in connector features large brass terminal blades to ensure consistent, reliable electrical connections.
  • Dual mechanical shutter system to help prevent insertion of foreign objects (TR models).
  • Permanent controlled markings on face of receptacle compliant with ASHRAE 90.1, CA Title 24, and NEC.
  • Auto-ground clip assures positive ground.
  • Half-controlled versions include welded, pre-wired lead that control top half of receptacle for split circuit applications.
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.


General Info
Color Ivory
UPC Number 785007051599
Country Of Origin Mexico
Product Line Pass & Seymour
Application Sector Commercial
Standard UL Listed, CSA Listed, FSUL
Listing Agencies / 3rd Party Agencies
cULus Listed  Yes
Technical Information
Number of Poles Double Pole
Voltage 125 V
Connection PlugTail
Dielectric Strength Withstands 2000V minimum
Phase Single
Temperature Rating Maximum continuous +60°C, minimum -40° without impact
Wire Size #12 AWG THHN
Number of Wires 3
Environmental Conditions UL94 V2
