Series 16 Panel Mounts

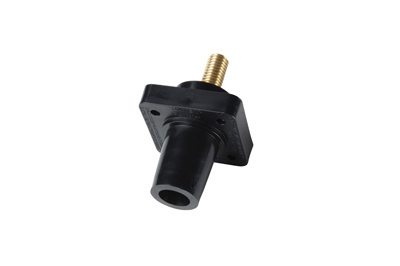

PS40FRSBBK Pass and Seymour

400A 600V FMALE CAM TS PNL MT

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Nylon housing provides outstanding impact and chemical resistance. Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity.
Heavy-duty hex set screws (available on double set screw version only) allow greater termination torque.

Specifications

General Info

Color	Black
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Standard	UL, cUL
UPC Number	785007308259

Dimensions

Product Depth US	6.8 in
Product Height US	1.0 in
Product Volume US	6.8 cu in
Product Width US	1.0 in
Product Weight US	0.74 lb

Technical Information

Amperage	400 A
Connection	Threaded
Environmental Conditions	Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
Operating Temperature	-40°-75°C
Operating Temperature Max	75 °C
Operating Temperature Min	-40 °C
Voltage	600.0 V
Wire Size	4/0
