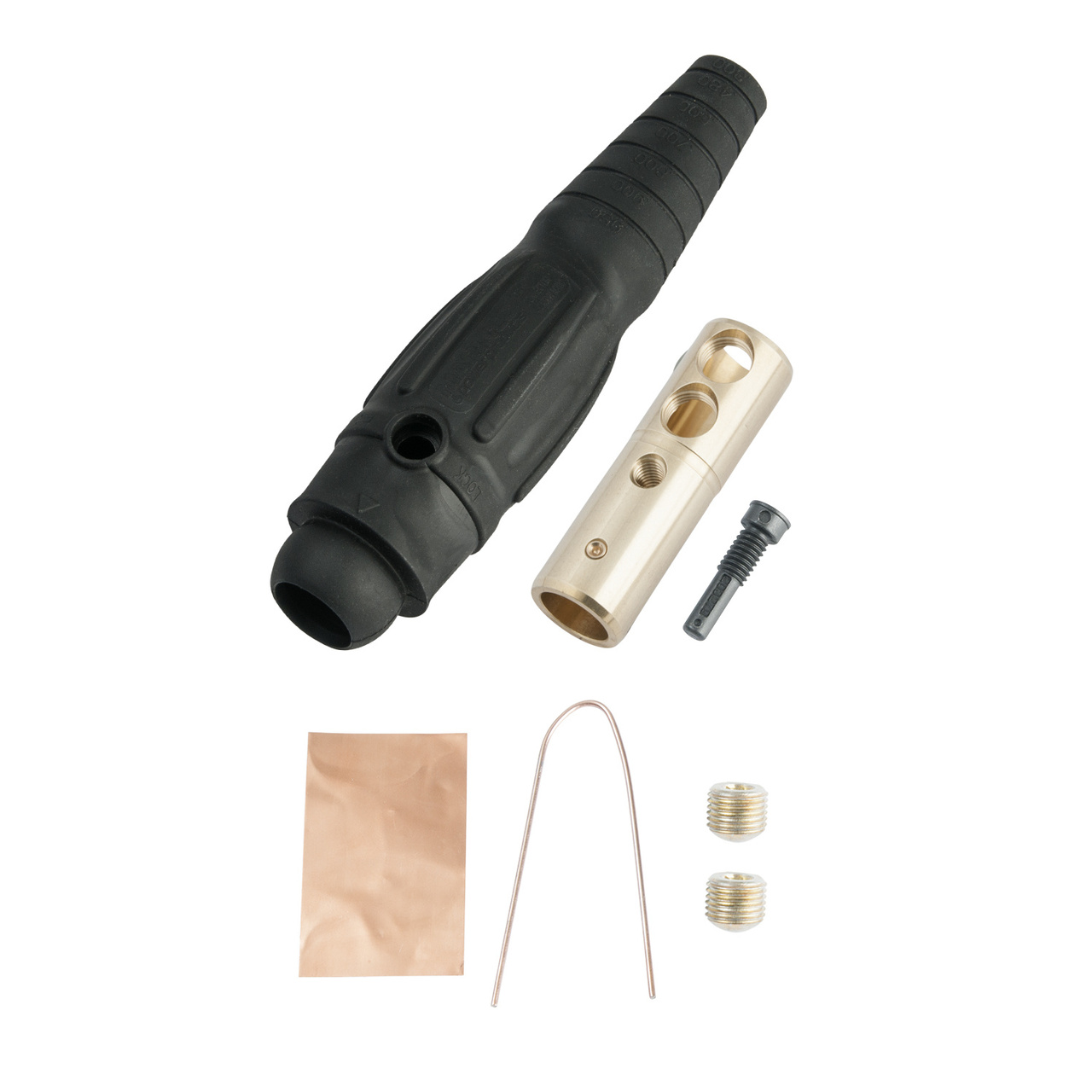

Series 18 In-Line Connectors

PLS1840FBK Pass and Seymour

Series 18 In Line Connectors - fivemale

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Interchangeable with Canadian CAM devices from other manufacturers. Ball nose design achieves NEMA 3R, 4 rating. Designed specifically for Sea Way cable. Accepts #6 through 4/0 size wire.
Double set screws for premium wire retention. Locking screw prevents contact from rotating inside housing.

Specifications

General Info

Color	Black
Application Sector	Commercial, Industrial
Product Line	Pass & Seymour
Country Of Origin	Mexico
Standard	UL, cUL, cCSAus
UPC Number	785007255348

Dimensions

Product Length US

6.8 in

Technical Information

Amperage	400 A
Environmental Conditions	Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact: Flammability UL94 V2: Enclosure: NEMA Type 3R and 4
Number of Poles	Single Pole
Operating Temperature	-40°-75°C
Operating Temperature Max	75 °C
Operating Temperature Min	-40 °C
Voltage	600.0 V
Wire Size	4/0
