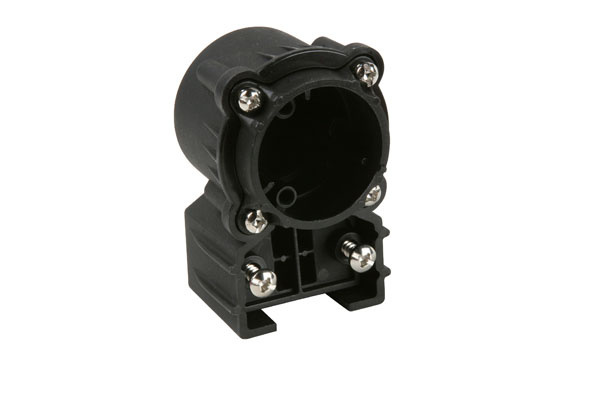

RIGHT ANGLE ADAPTER 15A Turnlok®
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Angle plugs and adapters both allow for 4-position face rotation.
- 20/30A 3 Wire Turnlok: Right Angle Adapters are adjustable up to 8 positions.
- Angle adapters (sold separately) will accommodate all P&S Turnlok style plugs and connectors on a retrofit basis. Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter.
- Tri-drive assembly and cord-grip screws are standard on all angle plugs and adapters.
- Angle plugs and adapters have the same wide cord diameter range (.230''-1.150'') that is present on all Turnlok plugs and connectors.
Specifications
General Info
| Product Line | Pass & Seymour | ||
| Color | Black | ||
| Country Of Origin | Mexico | ||
| Application Sector | Industrial | ||
| Standard | UL Listed |
Dimensions
| Product Width US | 1.94 in | ||
| Product Depth US | 1.37 in | ||
| Product Height US | 2.97 in |
Listing Agencies / 3rd Party Agencies
| cULus ListingNumber | 146159 | ||
| cULus Listed | Yes |
Technical Information
| Phase | 3 | ||
| Number of Wires | 4 | ||
| Amperage | 15 A | ||
| Number of Poles | 3-Way | ||
| Voltage | 600.0 V |
