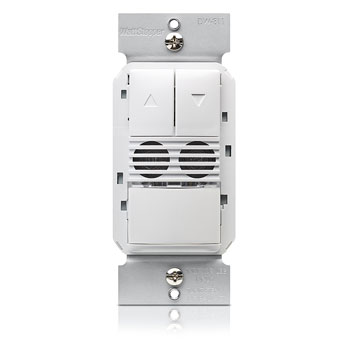

Dual Technology 0-10V Dimming Wall Mounted Occupancy Sensor, 120/277V, White

The WDSD10W dual technology wall switch sensor turns lights OFF and ON based on occupancy.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

General Info

Color	White
Product Series	DW-311
Type	Occupancy Sensor
Material	ABS
Finish	Gloss
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	China
Features	Adjustable Time Delay, Indicator Lights, Light Level Sensor, Sensitivity Adjustment, Test Mode, Walkthrough Mode
Installation Location	Wall
Switch Type	Motion Sensor, Push
Warranty Type	5-Year
UPC Number	785007501742

Dimensions

Additional Information

Product Has Potential to Contribute to LEED	Yes		This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings	Yes

Technical Information

On Function	Selectable Auto/Manual
Requires Neutral Wire	No
Wire Connection Type	Flying Leads
Frequency Band	60 Hz
Indicator	PIR Detection LED, Selectable audible alert for impending shutoff, Ultrasonic Detection LED
Indoor/Outdoor	Indoor
Input Voltage	120/277 VAC
Light Level Adjustment	Enable/Disable/Smart
Load Rating	1000 W @ 120 VAC, 1200 W @ 230/240/277 VAC
Location Rating	Dry
Mounting Type	In-Wall
Number of Buttons	3
Number of Poles	Multi-Location
Timer Duration	15 Minutes, 30 Minutes, 5 Minutes
Operating Temperature	0°-55°C, 32°-131°F
Operating Temperature Max	131 °F
Operating Temperature Min	32 °F
Operating Humidity	5-95% RH (Non-Condensing)
Sensing Range	Major motion: PIR 35x30 ft, Ultrasonic 20x20 ft,Minor motion: PIR 20 x 15 ft, Ultrasonic 15x15 ft
Sensitivity Adjustment	PIR (Min/Max), Ultrasonic (0-100%)
Sensor Type	Occupancy
Sensor Technology	Dual Technology, Passive Infrared (PIR), Ultrasonic
Sensor Coverage Pattern	180 °
Storage Temperature	23° - 176° F, -5° - 80° C
