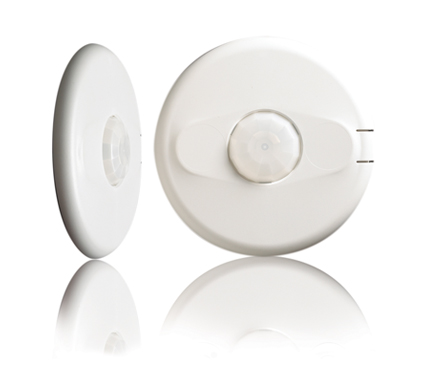

Passive Infrared Low Profile Ceiling Mount Occupancy Sensor, 24 VDC, 360°, 1200 sq. ft.

The CPS12RV Passive Infrared (PIR) Ceiling Sensors automatically turn lighting on and off based on occupancy.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

General Info

Color	White
Product Series	CI-300
Type	Occupancy Sensor
Material	ABS
Finish	Gloss
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	China
Features	Adjustable Time Delay, Indicator Lights, Isolated Relay, Light Level Sensor, Power Pack Required, Sensitivity Adjustment
Installation Location	Ceiling
Switch Type	Motion Sensor
Warranty Type	5-Year
UPC Number	785007502220

Dimensions

Additional Information

Product Has Potential to Contribute to LEED	Yes		This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings	Yes

Technical Information

On Function	Auto On
Wire Connection Type	Plug Terminal
Indicator	PIR Detection LED
Indoor/Outdoor	Indoor
Input Voltage	24 VDC/VAC
Light Level Adjustment	10-300 fc
Load Rating	1 A @ 30 VDC/VAC
Location Rating	Dry
Mounting Type	4 in Octagonal J-Box, Ceiling Tile, Surface
Timer Duration	30 Seconds, 5-30 Minutes
Operating Temperature	0°-55°C, 32°-131°F
Operating Temperature Max	131 °F
Operating Temperature Min	32 °F
Operating Humidity	5-95% RH (Non-Condensing)
Sensing Range	24 ft diameter
Sensitivity Adjustment	PIR (Min/Max)
Sensor Type	Occupancy
Sensor Technology	Passive Infrared (PIR)
Sensor Coverage	500 sq ft
Sensor Coverage Pattern	360 °
Storage Temperature	23° - 176° F, -5° - 80° C
