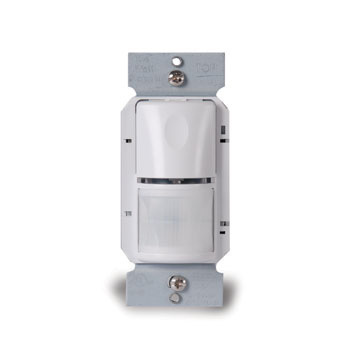

PIR Single Pole Single Relay Occupancy Sensor, 800W at 120V/1200W at 277V, White

The WP1S10W Passive Infrared (PIR) Wall Switch Sensor turns lighting or fan loads on and off based on occupancy and ambient light level.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Custom two-tier Fresnel lens enhances detection at the desktop level
Light level sensor holds lights off when ambient lighting is above the preset level
Patented voltage drop protection
Zero crossing circuitry reduces stress on the relay and results in increased sensor life
Adjustable time delay and sensitivity

General Info

Color	White
Product Series	WS-301
Type	Occupancy Sensor
Material	ABS
Finish	Gloss
Application Sector	Commercial
Product Line	Pass & Seymour
Country Of Origin	China
Features	Adjustable Time Delay, Indicator Lights, Light Level Sensor, Sensitivity Adjustment
Installation Location	Wall
Switch Type	Motion Sensor
Warranty Type	5-Year
UPC Number	785007501803

Dimensions

Additional Information

Product Has Potential to Contribute to LEED	Yes		This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings	Yes

Technical Information

On Function	Selectable Auto/Manual
Requires Neutral Wire	No
Wire Connection Type	Flying Leads
Frequency Band	60 Hz
Indicator	PIR Detection LED
Indoor/Outdoor	Indoor
Input Voltage	120 V, 240/277 VAC
Light Level Adjustment	0-200 fc
Load Rating	1000 W @ 120 VAC, 1200 W @ 240/277 VAC
Location Rating	Dry
Mounting Type	In-Wall
Number of Buttons	1
Number of Poles	Single Pole
Timer Duration	30 Seconds, 5-30 Minutes
Operating Temperature	0°-40°C, 32°-104°F
Operating Temperature Max	105 °F
Operating Temperature Min	33 °F
Operating Humidity	5-95% RH (Non-Condensing)
Sensing Range	Major motion 35 x 30 ft, Minor motion 20 x 15 ft
Sensitivity Adjustment	PIR (Min/Max)
Sensor Type	Occupancy
Sensor Technology	Passive Infrared (PIR)
Sensor Coverage Pattern	180 °
Storage Temperature	70° F
