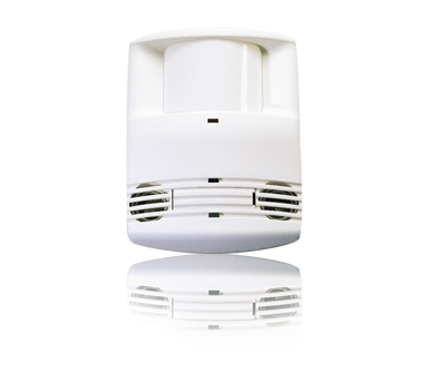

Dual Technology Ceiling Mount Occupancy Sensor 24 VDC 40 kHz
XDS20RV
Pass and Seymour
Bazaarvoice SAP Hybris Integration Version 2.8.1
The XDS20RV Series Dual Technology Ceiling Sensors combine PIR and ultrasonic technologies into one unit to achieve precise coverage in detecting occupancy.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Walk-through mode increases savings potential
- Built-in light level sensor
- Accepts low-voltage switch input for manual-on operation
- Automatic or manual-on operation when used with a BZ-150 Power Pack
- Ceiling and Wall Mount
- Combines passive infrared (PIR) and ultrasonic technologies
- Auto set automatically selects optimal settings for each space
Specifications
General Info
| Color | White | ||
| Product Series | DT-200 | ||
| Type | Occupancy Sensor | ||
| Material | ABS | ||
| Finish | Gloss | ||
| Application Sector | Commercial | ||
| Product Line | Pass & Seymour | ||
| Country Of Origin | China | ||
| Features | Adjustable Time Delay, Indicator Lights, Isolated Relay, Light Level Sensor, Power Pack Required, Sensitivity Adjustment, Test Mode, Walkthrough Mode | ||
| Installation Location | Ceiling, Wall | ||
| Switch Type | Motion Sensor | ||
| Warranty Type | 5-Year | ||
| UPC Number | 785007502398 |
Dimensions
| Product Depth US | 3.1 in | ||
| Product Height US | 4.3 in | ||
| Product Width US | 3.4 in |
Additional Information
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. | |
| Energy Savings | Yes |
Technical Information
| On Function | Auto On | ||
| Wire Connection Type | Flying Leads | ||
| Frequency Band | 40 kHz | ||
| Indicator | PIR Detection LED, Ultrasonic Detection LED | ||
| Indoor/Outdoor | Indoor | ||
| Input Voltage | 18 to 28 VDC/VAC | ||
| Light Level Adjustment | 10-200 fc | ||
| Load Rating | 1 A @ 30 VDC | ||
| Location Rating | Dry | ||
| Mounting Type | J-Box, Surface, Swivel Bracket | ||
| Timer Duration | 30 Seconds, 5-30 Minutes | ||
| Operating Temperature | 0°-55°C, 32°-131°F | ||
| Operating Temperature Max | 131 °F | ||
| Operating Temperature Min | 32 °F | ||
| Operating Humidity | 5-95% RH (Non-Condensing) | ||
| Sensing Range | 38 ft, 55 ft | ||
| Sensitivity Adjustment | PIR (Min/Max), Ultrasonic (Min/Max) | ||
| Sensor Type | Occupancy | ||
| Sensor Technology | Dual Technology, Passive Infrared (PIR), Ultrasonic | ||
| Sensor Coverage | 2000 sq ft | ||
| Sensor Coverage Pattern | 90 ° | ||
| Storage Temperature | 23° - 176° F, -5° - 80° C |
