Electronic Load Dimmer Station, 240 V (4 load) - DIN

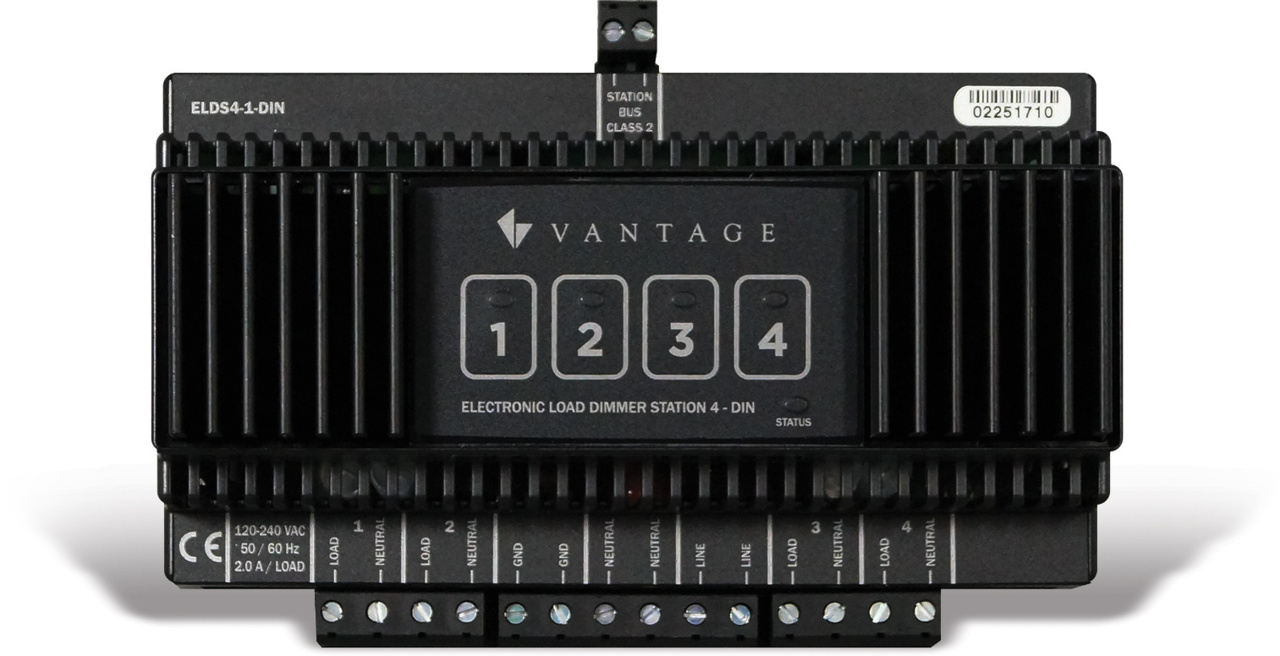

The Vantage ELDS4-1-DIN, Dimming Station is a 4 channel dimmer that connects to the Vantage Control System. It is powered from a local line feed, and communicates with the system through the Vantage 2-wire Station Bus.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Controls 4 electronic loads of up to 480 watts @ 240v
Controls 2 electronic loads of up to 960 watts @ 240v, (Two consecutive load outputs must not be used under these conditions)
Load actuator buttons with status indicators on front face
Exclusively for electronic loads
Connects to system via 2 wire Vantage Station Bus
Diagnostics / Station Status LED

Specifications

General Info

Type	Dimmer
Application Sector	Commercial, Residential
Product Line	Vantage
Country Of Origin	China
Warranty Type	5-Year
UPC Number	804428036586

Dimensions

Product Depth US	2.76 in
Product Height US	3.4 in
Product Width US	6.18 in
Product Weight US	1.4 lb

Listing Agencies / 3rd Party Agencies

CE Certified

Yes

Additional Information

Energy Savings

Technical Information

Compatibility	InFusion
Current Rating	4 A
Indoor/Outdoor	Indoor
Mounting	DIN Rail
Operating Temperature	0°-40°C, 32°-104°F
Storage Humidity	5-95% RH (Non-Condensing)
Voltage	120 to 277 V

Resources

Cutsheet

ELDS4-1-DIN Cutsheet

pdf

Installation Instructions

ELDS4-1-DIN Installation Instructions

pdf
