Standard Dimming Module Retro Terminal Kit + Plastic Back Plate

Vantage's AC Terminal Boards are sold and installed separately from the enclosures. This allows the installer to use different module models inside the enclosure. The TROSDM-P-KIT supports the SDM12-EM Module for retrofit installations in existing enclosures.

Send
Save as PDF
Added to Favorites Go to favorites

Remove from favorites?

Something went wrong. Please try again later.

Features

Terminal boards support eight loads as well as two line feeds and 12 neutrals.

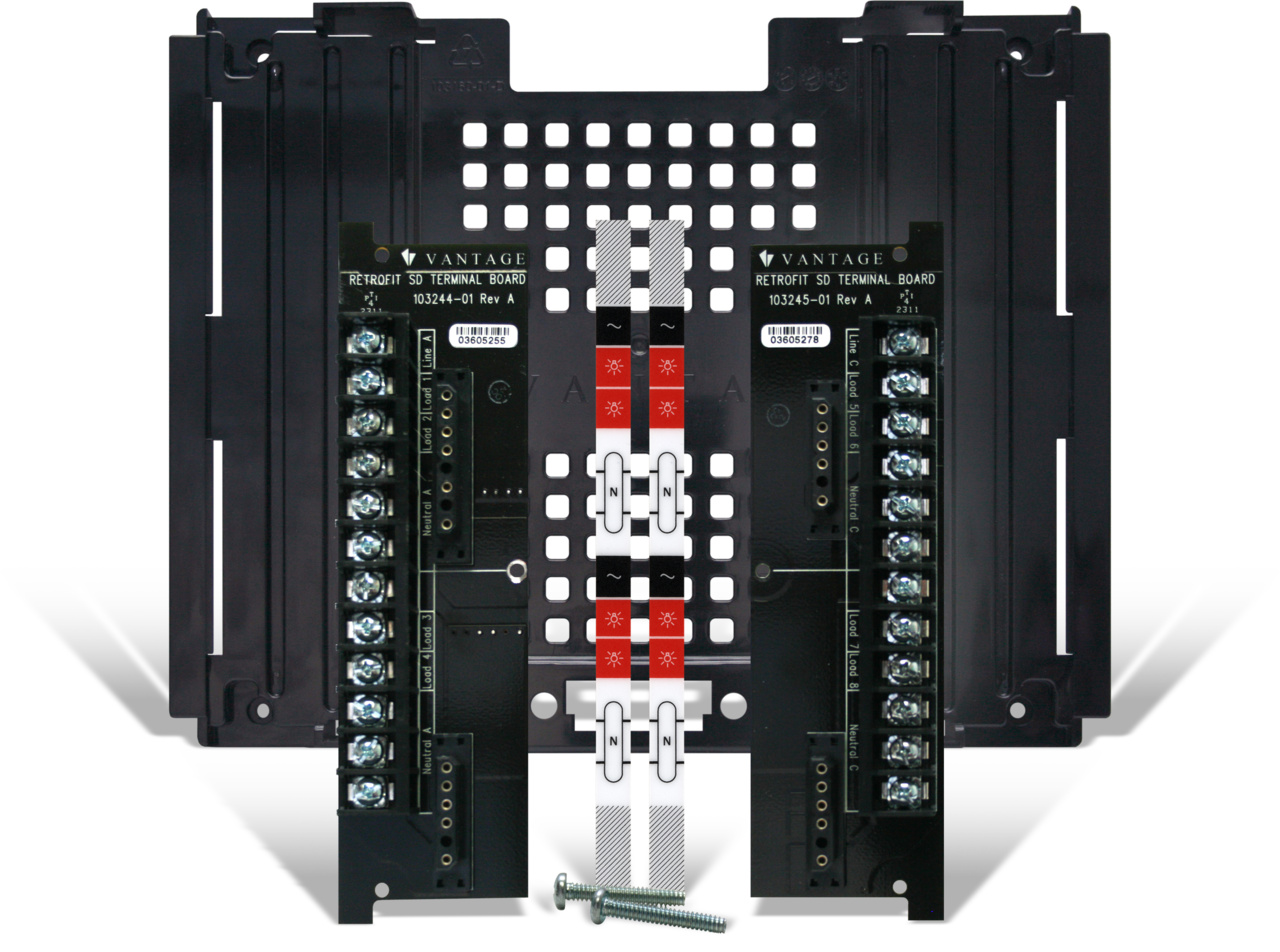

Includes one TROSDM-L (4 load, left board), one TROSDM-R (4 load, right board), module load labels (one pair), one plastic back plate, two #6-32 x 7/8 Screws
For enclosures with plastic standoffs (enclosures shipped after February 2005) instead of pem-studs (metal standoffs), the new plastic back plate is needed.

Specifications

General Info
