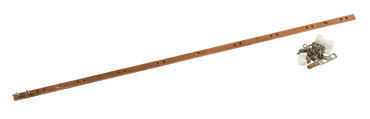

Vertical Ground Bar Kit

GBV36KIT Ortronics
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 10ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Vertical Ground Bar Kit, 5/8 x 36''''

Height 36.0 in
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites

Features

  • Manufactured of 1/4" thick electrolytic tough pitch 110 copper alloy bar
  • Accommodates one hole lugs or two hole lugs (5/8" on center)
  • Has 2 PEM studs at both ends for ground conductor connection

Specifications

General Info
Color Metal
Type Ground Bar Kit
Application Sector Commercial
Product Line Ortronics
Country Of Origin United States
Warranty Type 5-Year
Standard BICSI;ANSI/TIA- 607
UPC Number 662875665298
Dimensions
Product Depth US 0.25 in
Product Height US 36.0 in
Product Width US 1.0 in
Screw Size 1 in
Additional Information
RoHS Compliant Yes This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863.
Technical Information
Conductor Material Copper
Conductor Size 3 AWG
Mounting Screw Down
Number of Holes 16
Termination Style Screw Terminal
