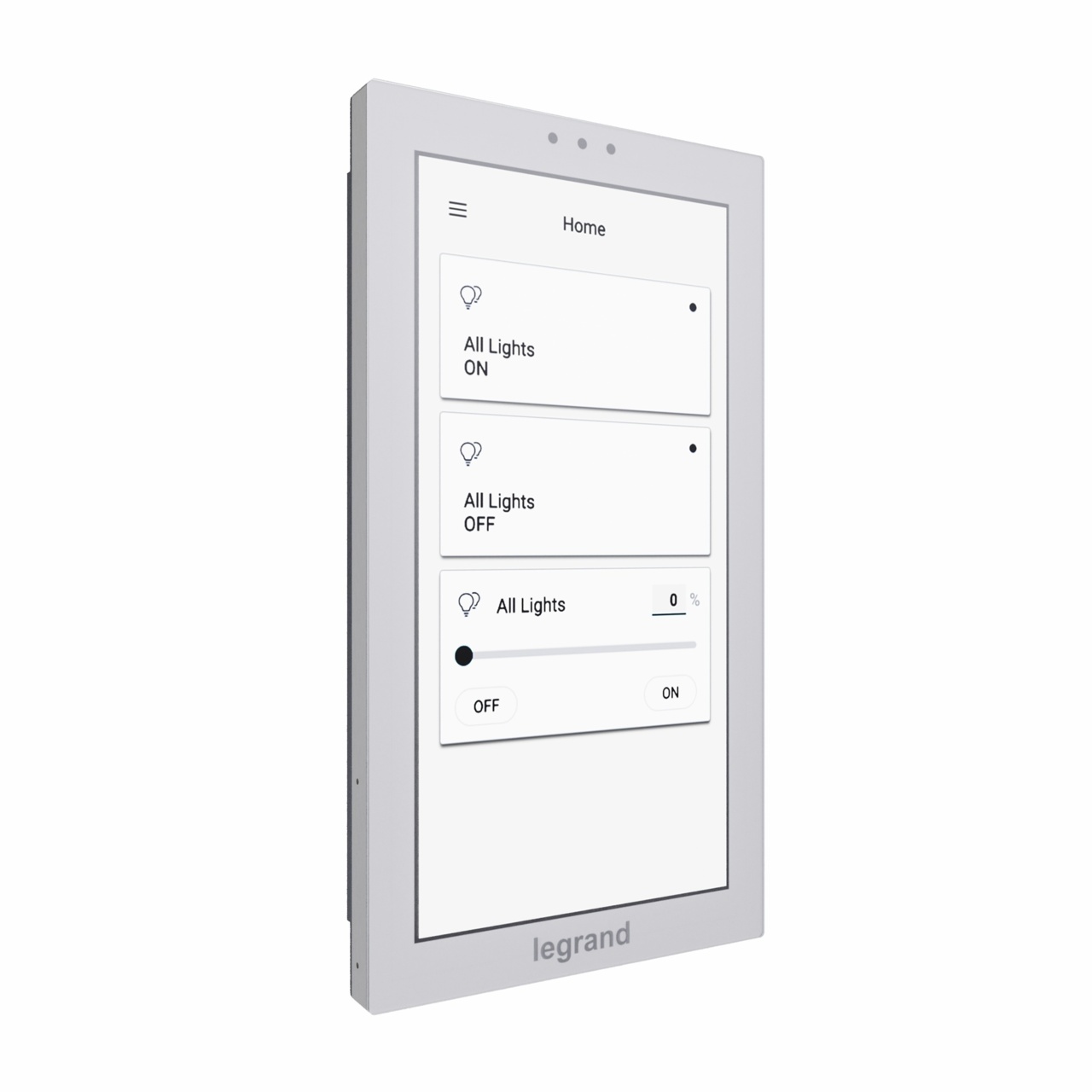

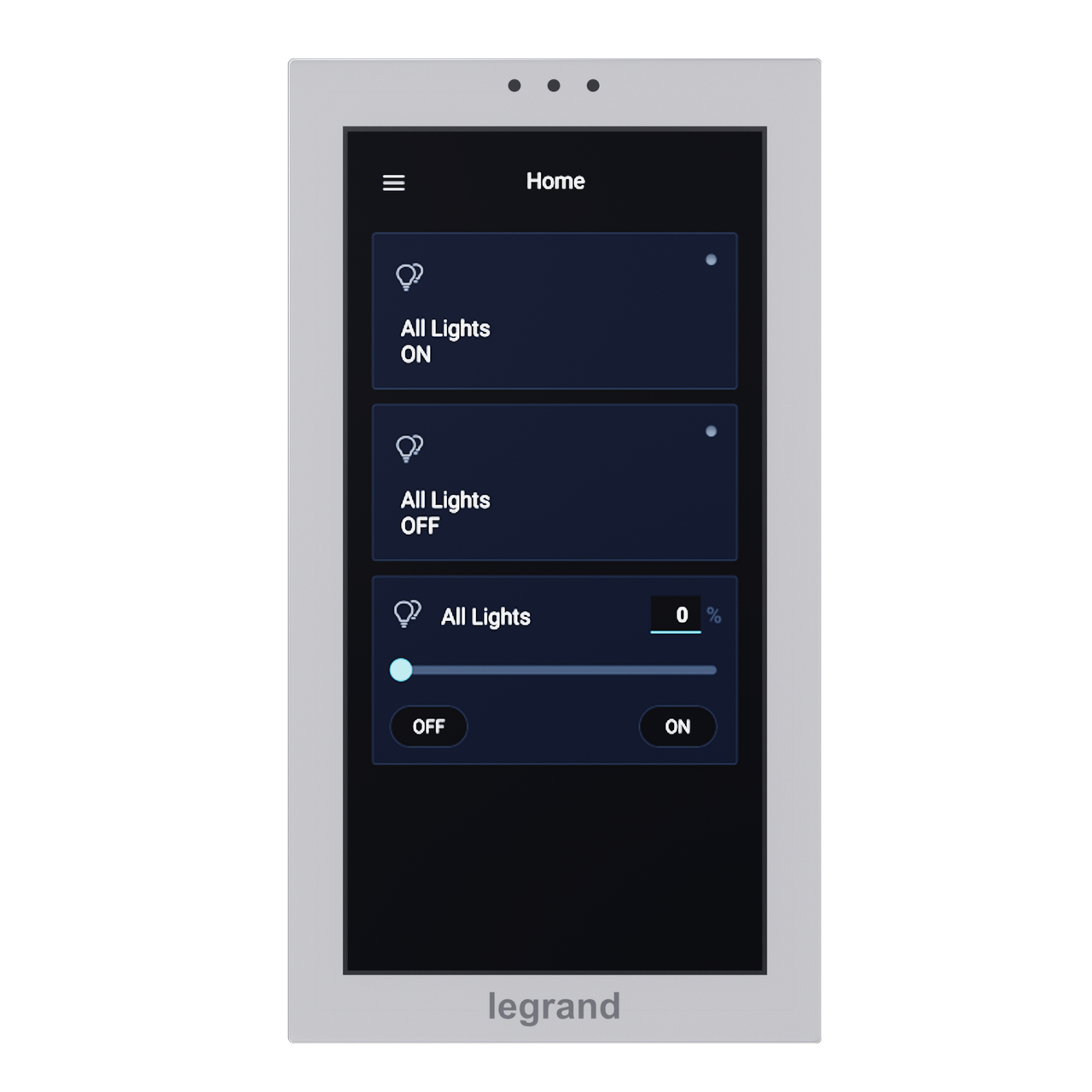

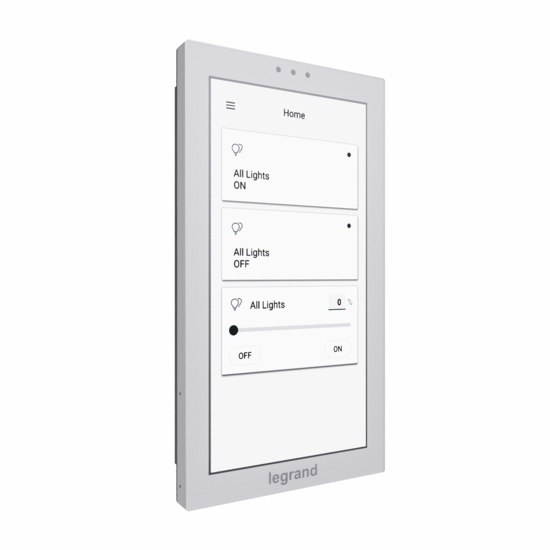

Wattstopper PLUS 5.7", Graphic Switch Touchscreen with PoE, White
EN-GS-150-W
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1
The EN-GS-150 graphic switch is a native Wattstopper PLUS PoE powered wired device with a 5.7" capacitive touch LCD display that enables simple control for complex spaces. The user interface provides an intuitive professional experience for whole room control of lights, shades, scenes, and tunable white loads. The EN-GS-150 is fully programmable with Polaris Config software enabling facility managers to customize button text, icons, and sequence of operations.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Features
- Full color capacitive touch LCD display with native Wattstopper PLUS support
- Control support for lights, shades, scenes, tunable white, and network groups
- Attractive streamlined aesthetic with full glass face, available in Black or White with aluminum trim
- Intuitive user interface supports up to 8 screens and multiple button types per screen
- System-wide zone control within the Wattstopper PLUS system
- Compatible with Wattstopper PLUS GreenBus, Wireless, and DALI managers
- Power-over-Ethernet (PoE) connectivity for streamlined installation
Specifications
General Info
| Color | White | ||
| Product Series | EN-GS | ||
| Type | User Interface | ||
| Material | Glass | ||
| Finish | Gloss | ||
| Application Sector | Commercial | ||
| Product Line | Wattstopper | ||
| Country Of Origin | China | ||
| Number of Switches | 0 | ||
| Switch Type | Touch | ||
| Warranty Type | 5-Year | ||
| Standard | CE, FCC, RoHS, IEEE 802.3af, IEEE 802.3at, UL, cUL |
Dimensions
| Product Depth US | 1.24 in | ||
| Product Height US | 5.9 in | ||
| Product Width US | 2.6 in | ||
| Product Weight US | 0.6 lb |
Listing Agencies / 3rd Party Agencies
| CE Certified | Yes | ||
| FCC Compliant | Yes | ||
| cUL Listed | Yes |
Additional Information
| Energy Savings | No | ||
| RoHS Compliant | Yes | This product meets the material restrictions of Article 4 of the RoHS Directive (2011/65/EU), including Commission Delegated Directive 2015/863. |
Technical Information
| Number of Connections | 1 | ||
| Number of Rockers | 0 | ||
| Topology | Star | ||
| Wire Connection Type | RJ-45 | ||
| Compatibility | Wattstopper PLUS Wired, Wattstopper PLUS Wireless | ||
| Has Battery | No | ||
| Indoor/Outdoor | Indoor | ||
| Input Voltage | 48 VDC | ||
| Location Rating | Dry | ||
| Mounting Type | Wall | ||
| Number of Buttons | 0 | ||
| Operating Temperature | 32°-122°F | ||
| Operating Temperature Max | 122 °F | ||
| Operating Temperature Min | 32 °F | ||
| Operating Humidity | 5-85% RH (Non-Condensing) | ||
| Power Consumption | 4 W | ||
| Power Supply | PoE | ||
| Storage Temperature | -4° - 140° F |
