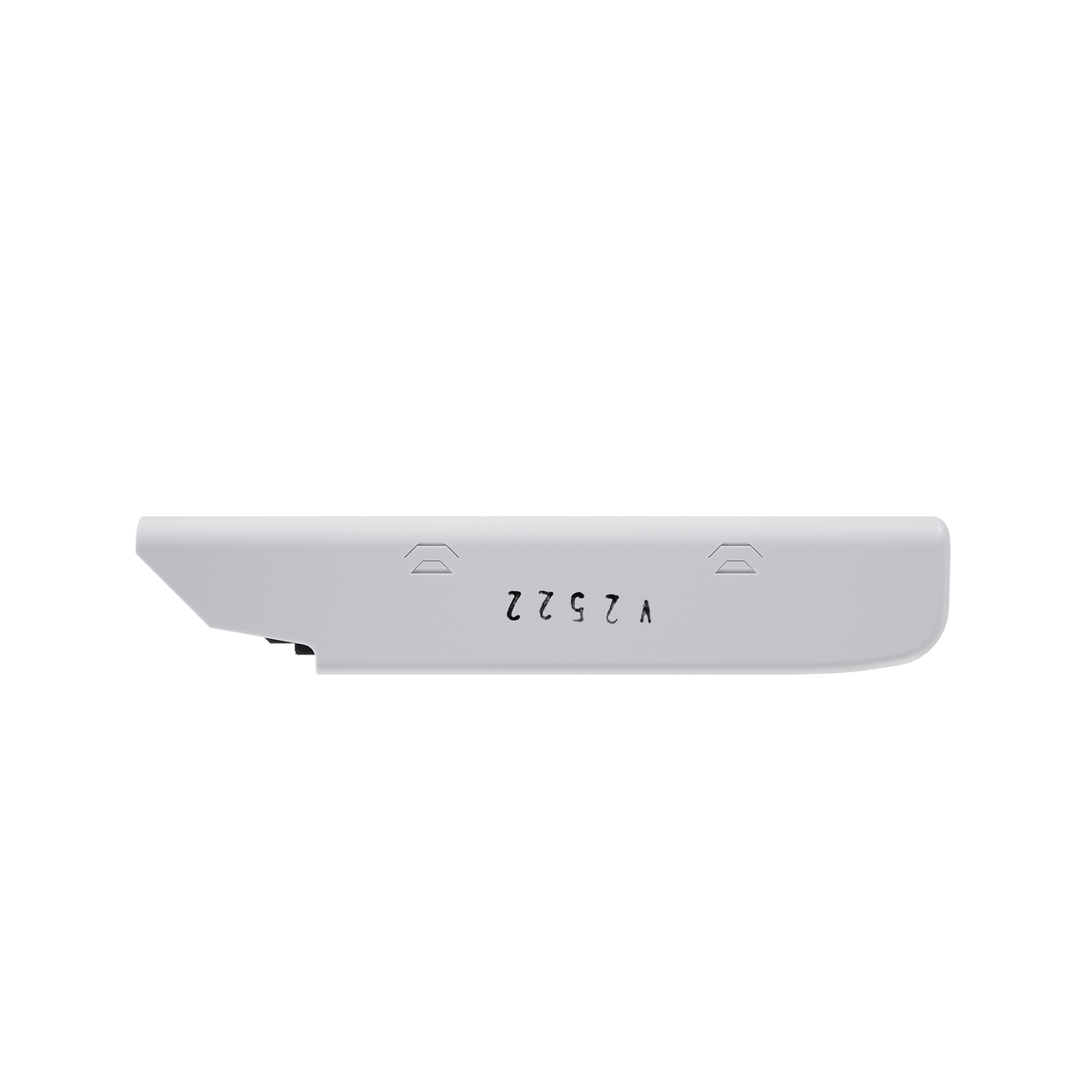

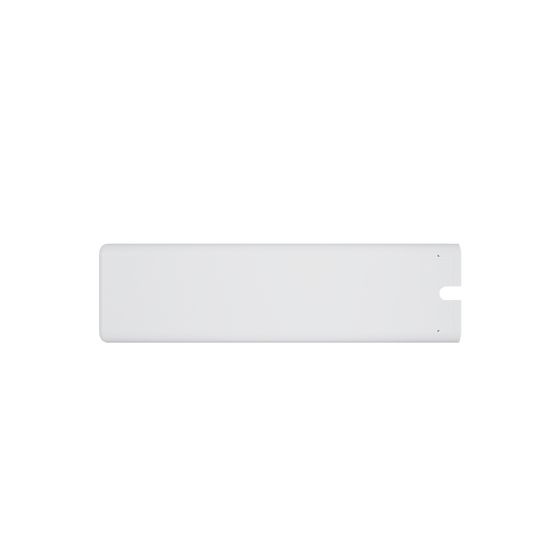

Wireless DALI Luminaire Controller, White
EN-WDLC-ZB
Wattstopper
Bazaarvoice SAP Hybris Integration Version 2.8.1
The Wireless DALI Luminaire Controller (WDLC) enables standard DALI drivers to be integrated as part of the Wattstopper PLUS Wireless Lighting Control System. The WDLC is able to individually address and control up to 2 DALI drivers and can provide group control for up to 8 DALI drivers. The WDLC supports connection to an additional DALI-2 certified occupancy sensor and Daylight sensor. The WDLC also supports advanced devices such as DT8 Tunable White Drivers for manual and automated Tunable White use cases as well as DALI Emergency Lighting and testing.
- Send
- Save as PDF
-
Added to Favorites Go to favoritesRemove from favorites?Something went wrong. Please try again later.
Product Details
The Wireless DALI Luminaire Controller (WDLC) enables standard DALI drivers to be integrated as part of the Wattstopper PLUS Wireless Lighting Control System. The WDLC is able to individually address and control up to 2 DALI drivers and can provide group control for up to 8 DALI drivers. The WDLC supports connection to an additional DALI-2 certified occupancy sensor and Daylight sensor. The WDLC also supports advanced devices such as DT8 Tunable White Drivers for manual and automated Tunable White use cases as well as DALI Emergency Lighting and testing.
- Integrated wireless transceiver module DALI interface for addressed or broadcast operation
- Supports communication with DALI-2 Occupancy and Daylight Sensors
- Tunable White control of DT8 Drivers
- DALI Emergency Lighting and Testing
Specifications
General Info
| Color | White | ||
| Product Type | Load Controller | ||
| Material | Plastic | ||
| Finish | Plastic | ||
| Application Sector | Commercial | ||
| Product Family / Series / Group | Wattstopper PLUS | ||
| Product Line | Wattstopper | ||
| Country Of Origin | Hungary | ||
| Installation Location | Fixture | ||
| Warranty Type | 5-Year |
Dimensions
| Product Depth US | 108.0 mm | ||
| Product Height US | 21.0 mm | ||
| Product Width US | 30.0 mm | ||
| Product Weight US | 1.44 oz |
Listing Agencies / 3rd Party Agencies
| CE Certified | Yes |
Additional Information
| Product Has Potential to Contribute to LEED | Yes | This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information. | |
| Energy Savings | Yes |
Technical Information
| Antenna Type | IFA-PCB | ||
| Antenna Pattern | Omni-directional | ||
| Current Draw | 12 mA | ||
| Number of Connections | 1 | ||
| Wire Connection Type | Terminal Block | ||
| Dimming Compatibility | DALI | ||
| Compatibility | Wattstopper PLUS DALI, Wattstopper PLUS Wireless | ||
| Frequency Band | 2.4 GHz | ||
| Has Battery | No | ||
| Indicator | Configuration LED | ||
| Indoor/Outdoor | Indoor | ||
| Input Voltage | 220 to 240 VAC | ||
| Line Frequency | 50 Hz, 60 Hz | ||
| Location Rating | Dry | ||
| Mounting Type | Fixture Embedded | ||
| Operating Temperature | -20°-60°C | ||
| Operating Temperature Max | 60 °C | ||
| Operating Temperature Min | 20 °C | ||
| Output Voltage | 14 VDC | ||
| Wireless Range | Zigbee, up to 100 ft |
