6-foot Express On-Floor Kit TR with 25-foot Single Circuit Receptacle and Data Device 6-foot Express On-Floor Kit TR with 25-foot Single Circuit Receptacle and Data Device
6-foot Express On-Floor Kit TR with 25-foot Single Circuit Receptacle and Data Device 6-foot Express On-Floor Kit TR with 25-foot Single Circuit Receptacle and Data Device
6-foot Express On-Floor Kit TR with 25-foot Single Circuit Receptacle and Data Device 6-foot Express On-Floor Kit TR with 25-foot Single Circuit Receptacle and Data Device

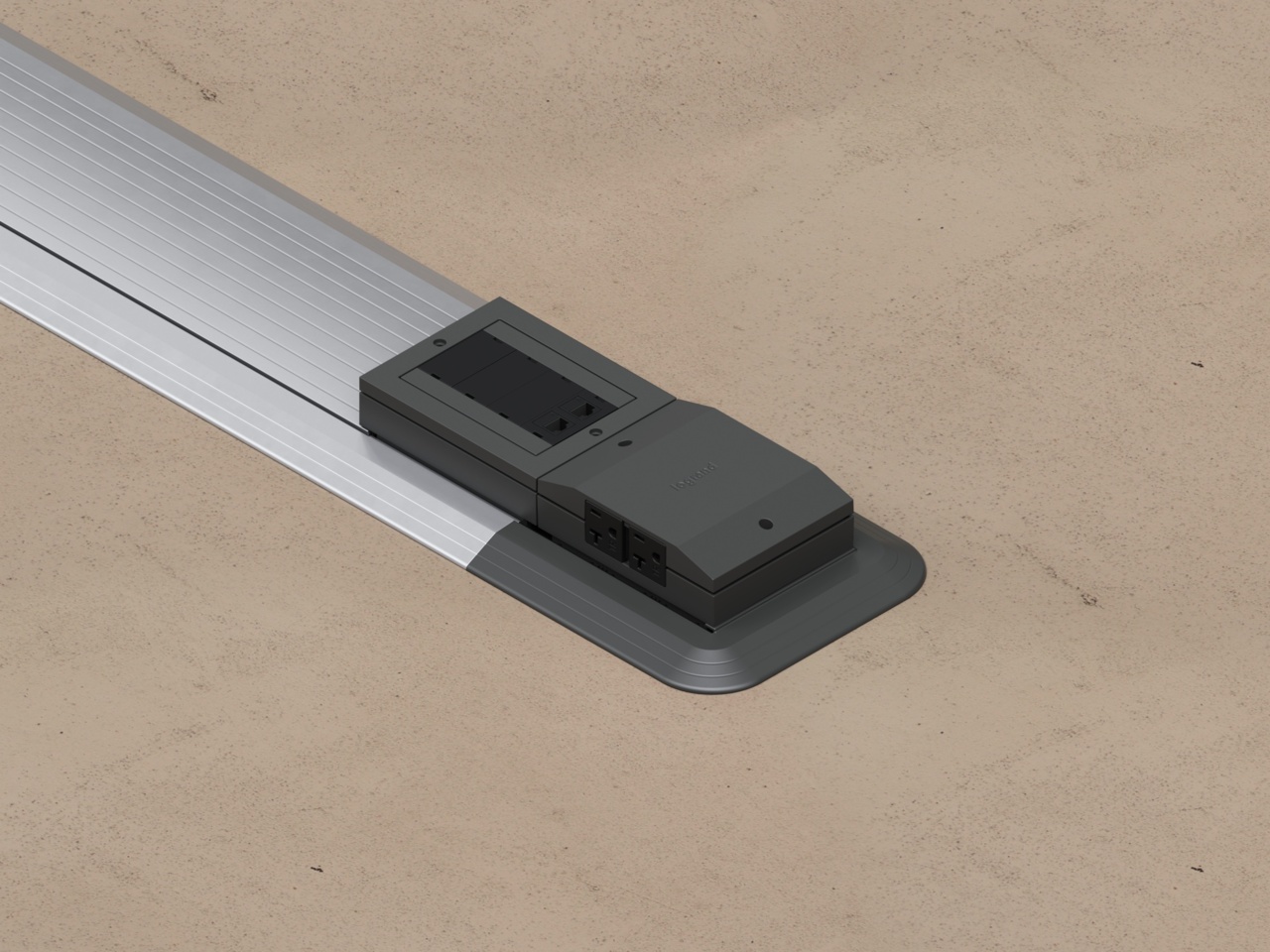

6-Foot Express On-Floor Kit Tamper-Resistant

XPO6KTR-SV Connectrac
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 7ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

The Express On-Floor Tamper-Resistant Kit with 25-Foot Single-Circuit and Data Device seamlessly manages both power and data cables. Ideal for applications that need a grab-and-go power/data solution that meets the highest safety standards. Easily integrates into both retrofit and new construction applications.

Where To Buy
  • Send
  • Save as PDF
  • Add to favorites Remove from favorites
Features

Features

  • Seamlessly integrates into any layout with one prewired quad receptacle (single circuit) and supports up to four 8 keystone modules (data or AV)
  • Contains everything needed for installation including prewired power, versatile data and low-profile transition ramps
  • Meets ADA compliance standards
  • Includes a standard 6-foot raceway with 3-foot extensions available for extra design flexibility (easy to install and can be cut in the field)
  • Tamper-resistant
Specifications

Specifications

General Info
Color Silver
Product Series Express
Type Raceway
Material Aluminum, Plastic, Steel
Application Sector Commercial, Education, Healthcare
Product Line Connectrac
Country Of Origin Taiwan, Province Of China
Installation Location On Floor
Number of Receptacles 4
Outlet Type Tamper-Resistant
UPC Number 810056052997
Dimensions
Product Height US 4.625 in
Product Length US 67.75 in
Product Width US 7.975 in
Product Weight US 15.79 lb
Additional Information
Product Has Potential to Contribute to LEED Yes This product contributes to earning credits in the LEED rating system. Visit our LEED with Legrand webpage for more information.
Energy Savings No
Technical Information
Amperage 20 A
Maximum Cables Supported 8
Indoor/Outdoor Indoor
Is Pre-Wired Yes
NEMA Configuration Code 5-20R
Number of Circuits 1
Number of Gangs 2
Number of Ports 4
